Description

WLA-28A

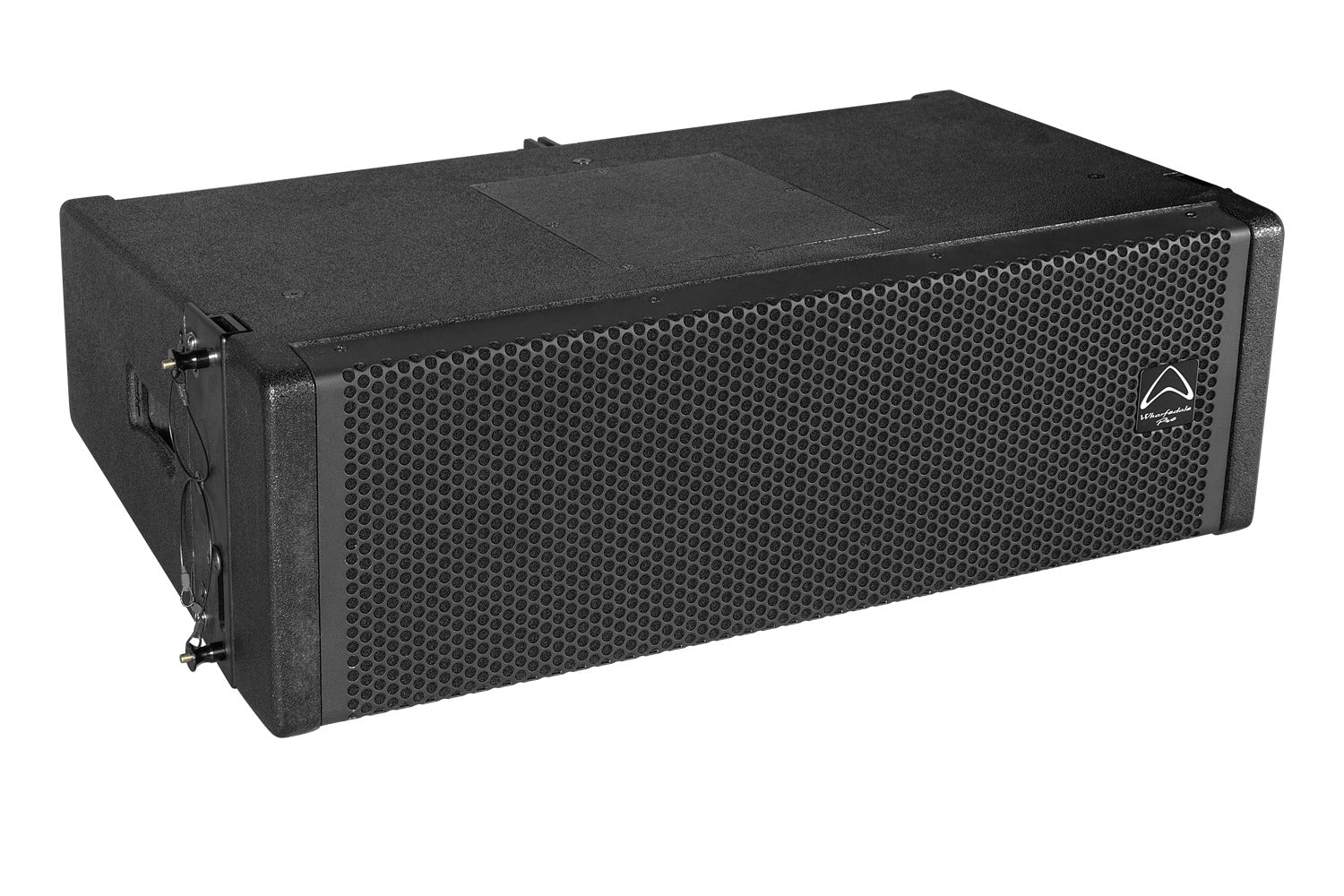

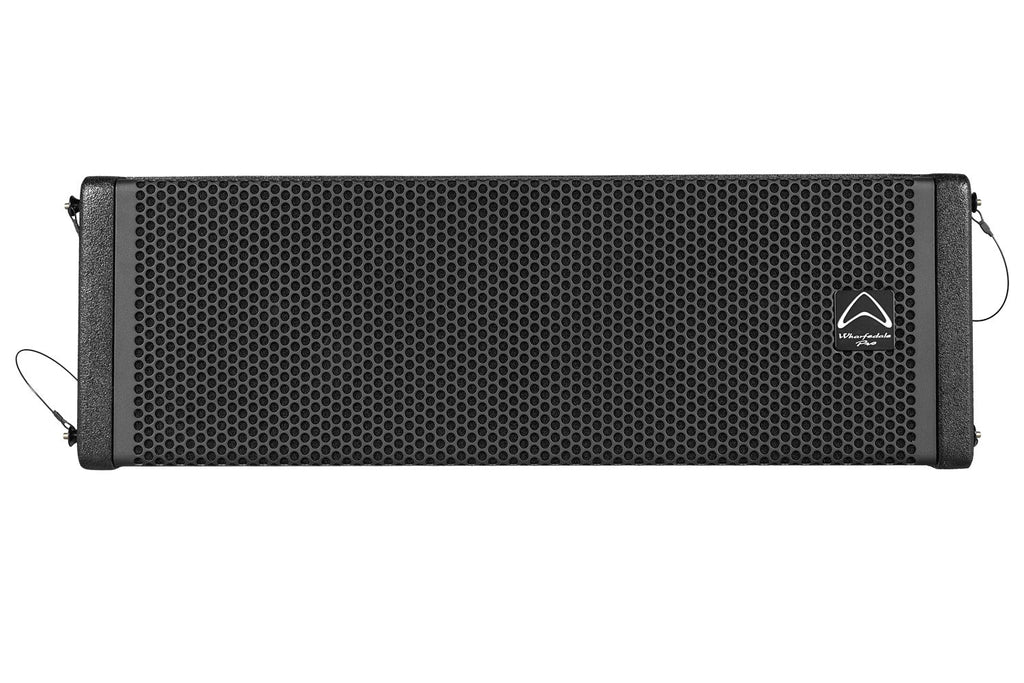

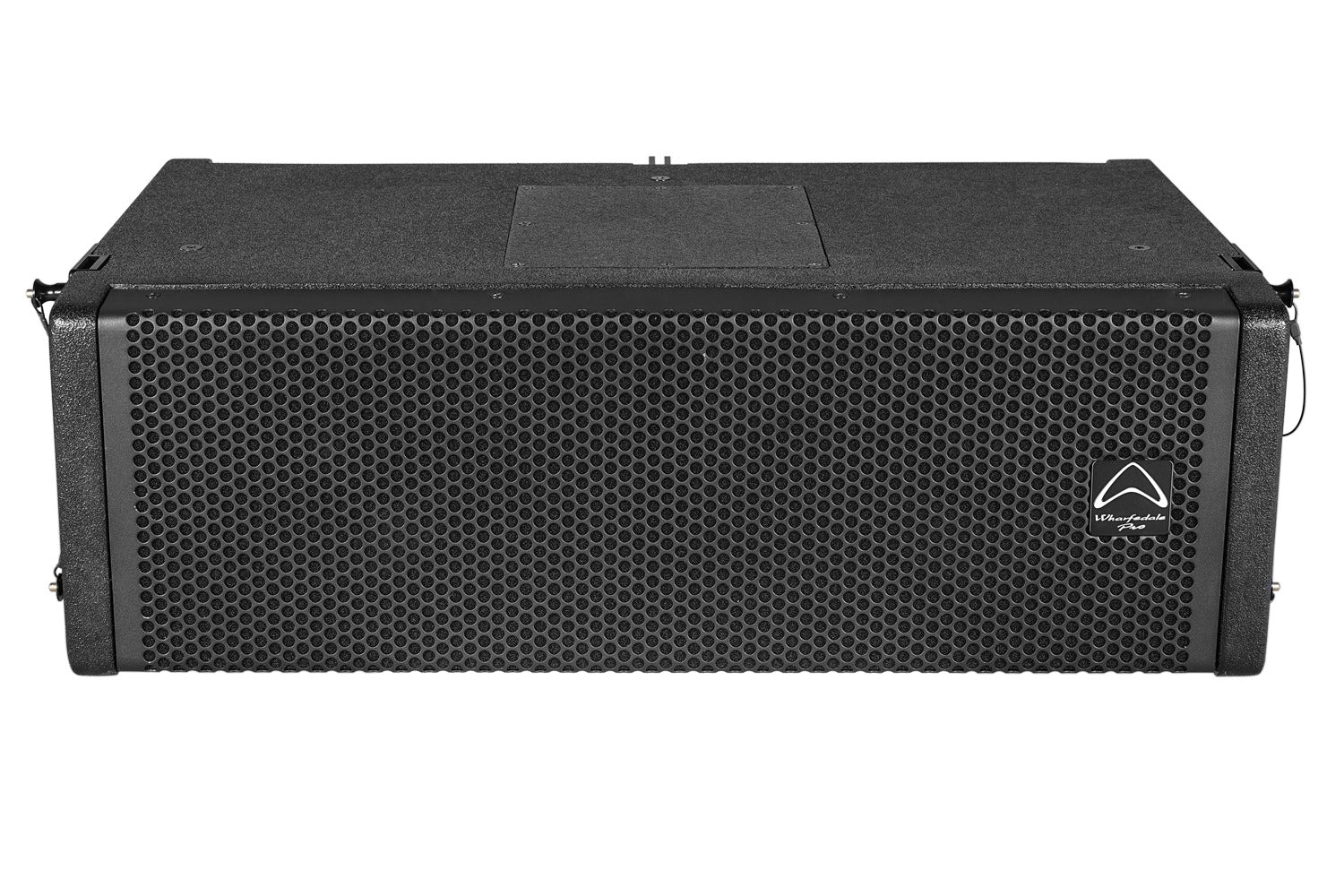

WLA-28A - 2 x 8" active element. Birch plywood construction. Internal DSP with FIR filters. Software control over RS485 protocol.

DUAL 8"

At the heart of the WLA-28A are 2 x 8″ custom Wharfedale Pro LF drivers.

These feature 2.0″ voice coils to ensure high efficiency and high power handling.

These perfectly matched custom transducers are what give a WLA-28A system that special sonic impact.


INTERNAL DSP WITH FIR

8 x DSP Presets – built in – including FIR.

Easy to get great results – fast.

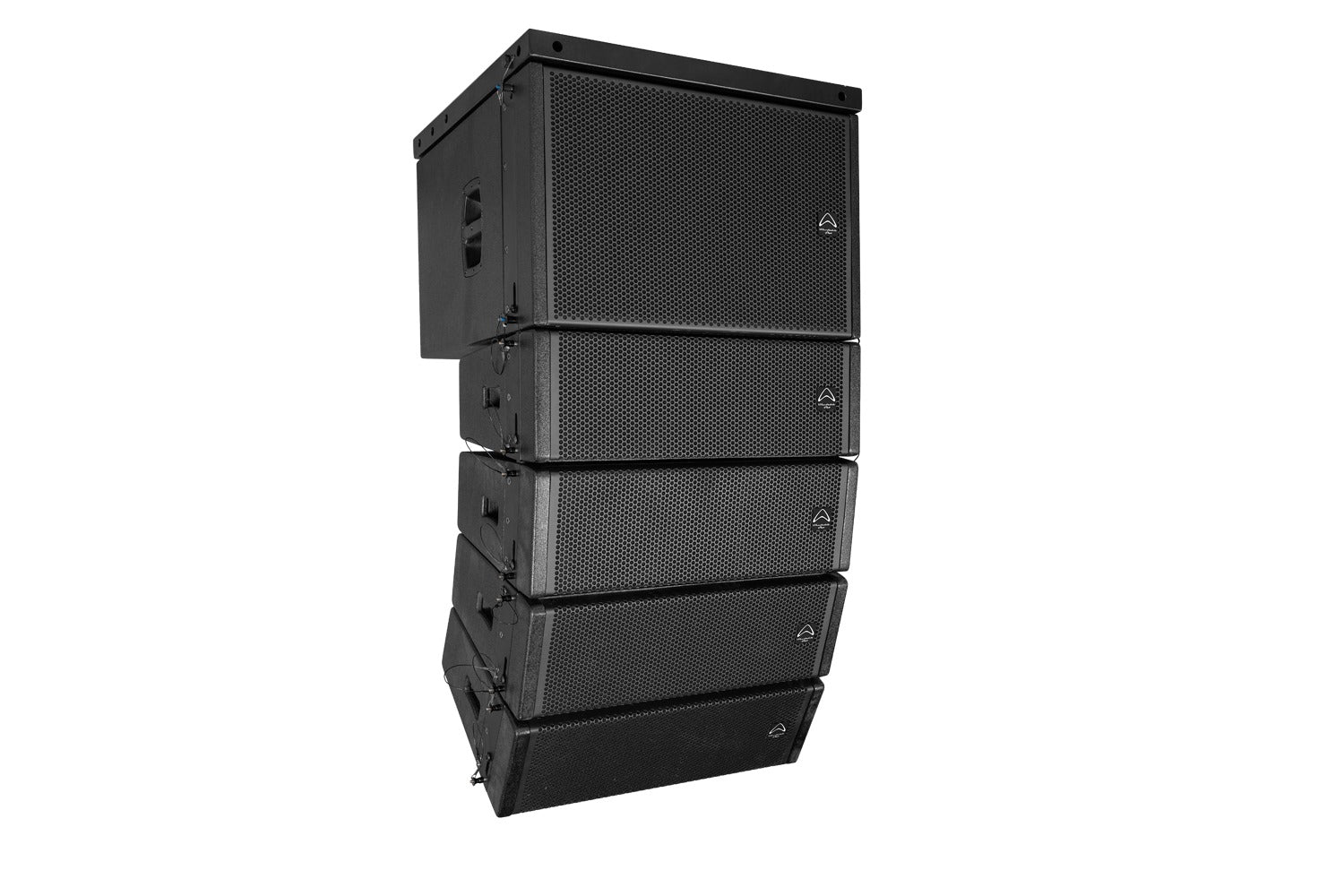

For the subwoofers (WLA-28SUBA and WLA-218BA) the AUDIENCE or STAGE presets can be used in an Inverted Stack Gradient array configuration.



ABOUT THE CLARITY

The new neo HF compression driver delivers additional clarity and performance with enhanced definition.

It is custom made by Wharfedale Pro and is coupled to a 100° x 10° waveguide.



SOFTWARE CONTROL

The network connection uses RS485 protocol and gives GUI control over the DSP parameters of each element in the array.



SPECIFICATIONS
Model Name WLA-28A
System Type Active 8” 2-way Bi-Amplified
Frequency Response (+/-3 dB) 60 Hz – 20 KHz
Frequency Range (-10 dB) 55 Hz – 20 KHz
Loudspeaker Sensitivity @ 1 W / 1 m) 100 dB
Maximum SPL(peak)(@1 m) 132 dB
Nominal Coverage (H x V) 100° x 10°
Signal Processing DSP based, 8 FIR presets resident in Input Module
Preset list A) 1 SPKR 100 Hz HPF
B) 2 to 4 SPKR 100 Hz HPF
C) 4 to 8 SPKR 100 Hz HPF
D) >8 SPKR 100 Hz HPF
E) 2 to 4 SPKR
F) 4 to 8 SPKR
G) >8 SPKR
H) CUSTOM
Amplifiers
Amplifier Design Class D
Power Rating: 1500 W Peak (1300 W LF +
200 W HF), 750 W Continuous
(650 W LF + 100 W HF)
Power On Protection Power switch on/off mute
Thermal Protection Amplifier Shut Down. Auto Reset
Low Line Voltage Shut Down 80% Nominal Line Voltage
Driver Protection Independent L/ H Limiters and DC
DC and Short Protection Yes
Limiter Indicator Red LED
Signal Indicator Green LED
Power/Active Indicator White LED
Find Function Indicator Blue LED
Input Sensitivity +4 dBu
Maximum Input Level +18 dBu
Input Impedance Balanced: 10 KΩ
AC Power details – Power Supply High Efficiency Switching Mode Power Supply

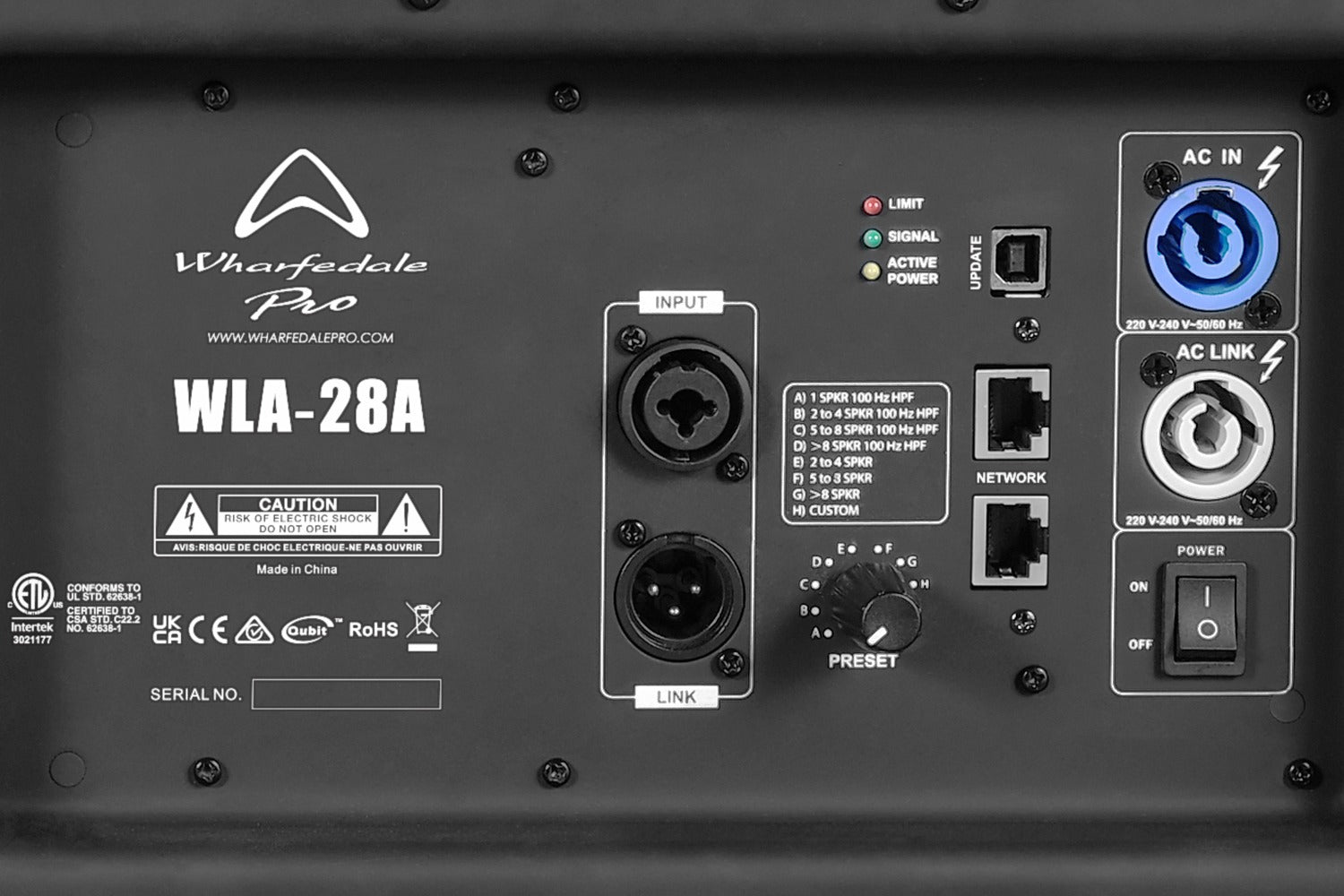

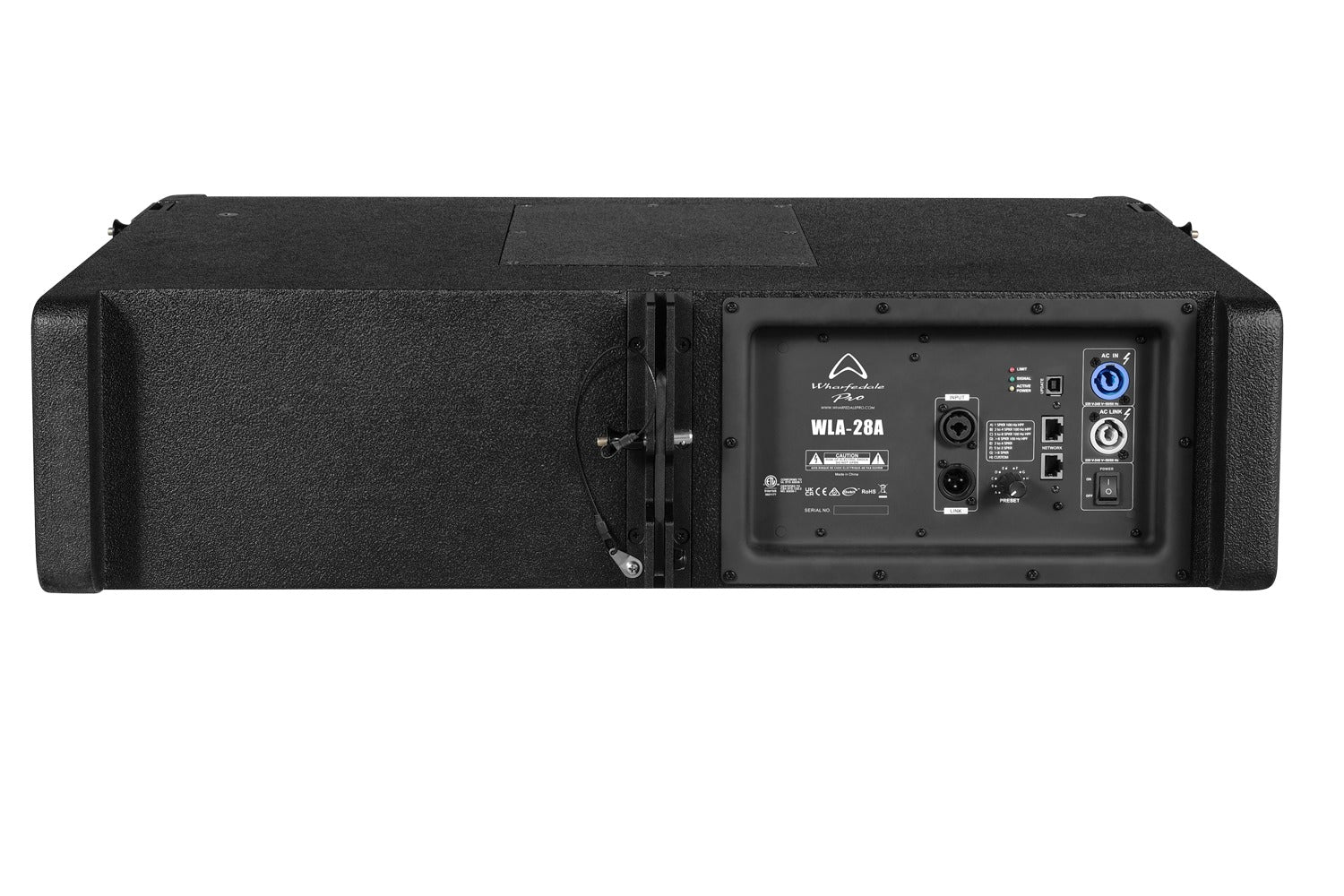

Connectors
Input Connector XLR 1/ 4〞Combo jack
Link Connector Balanced XLR pin Connector
UPDATE USB Type B
NETWORK (RS485) RJ45
AC Power Options AC 100-120 V~/ 220-240 V~,50/60 HZ
AC Input Connector powerCON
AC Loop Through Connector powerCON

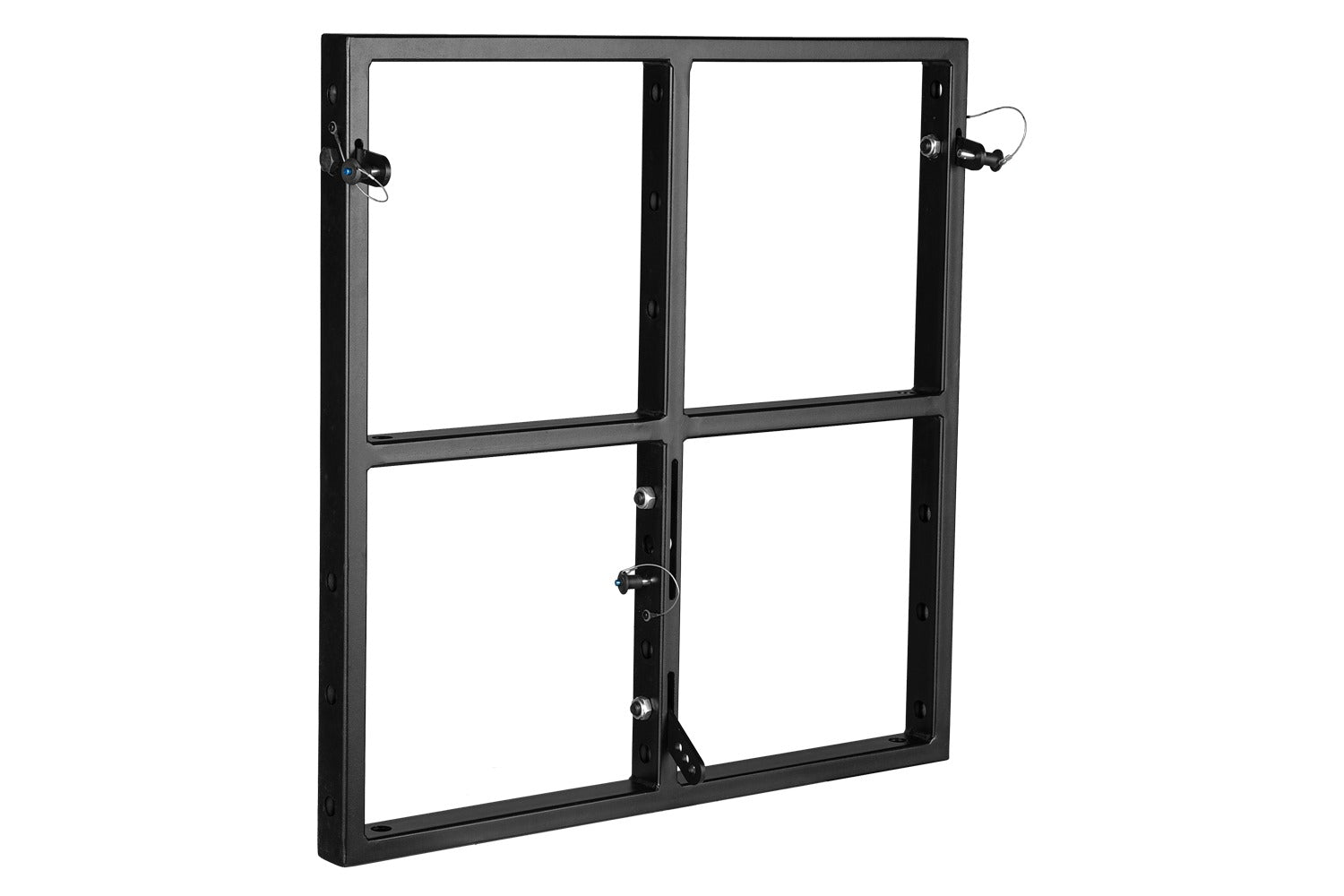

Hardware – Rigging Integral side plate adjustable
rigging 0°-10°
Enclosure Material and finish 15 mm / 18 mm Plywood
Colour Options Black Rhino Paint
Grille Material & Finish 1.5 Steel

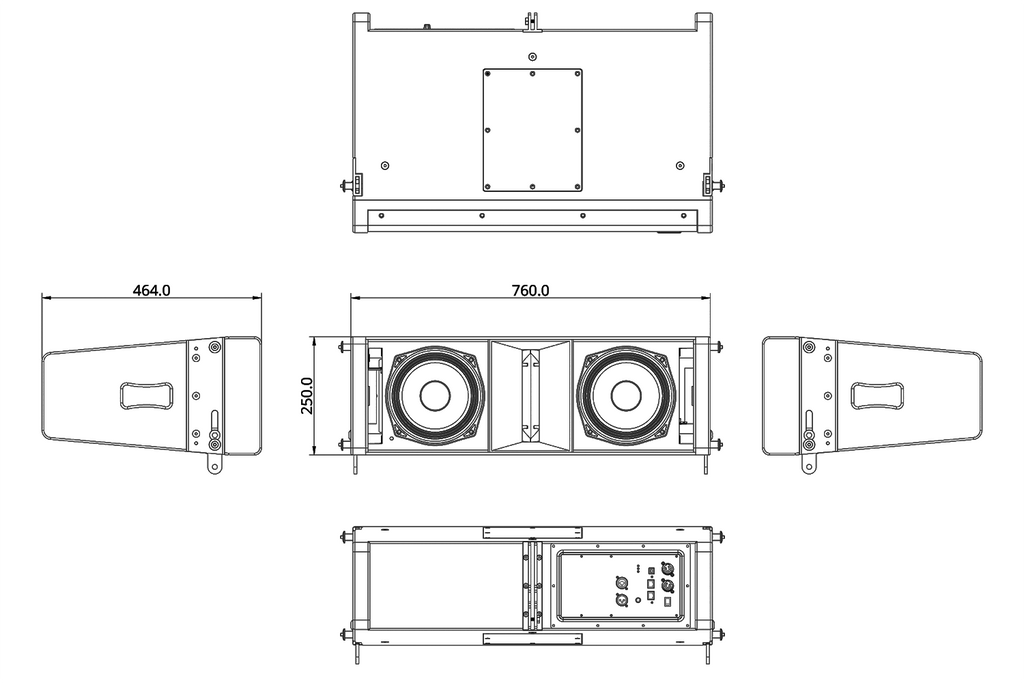

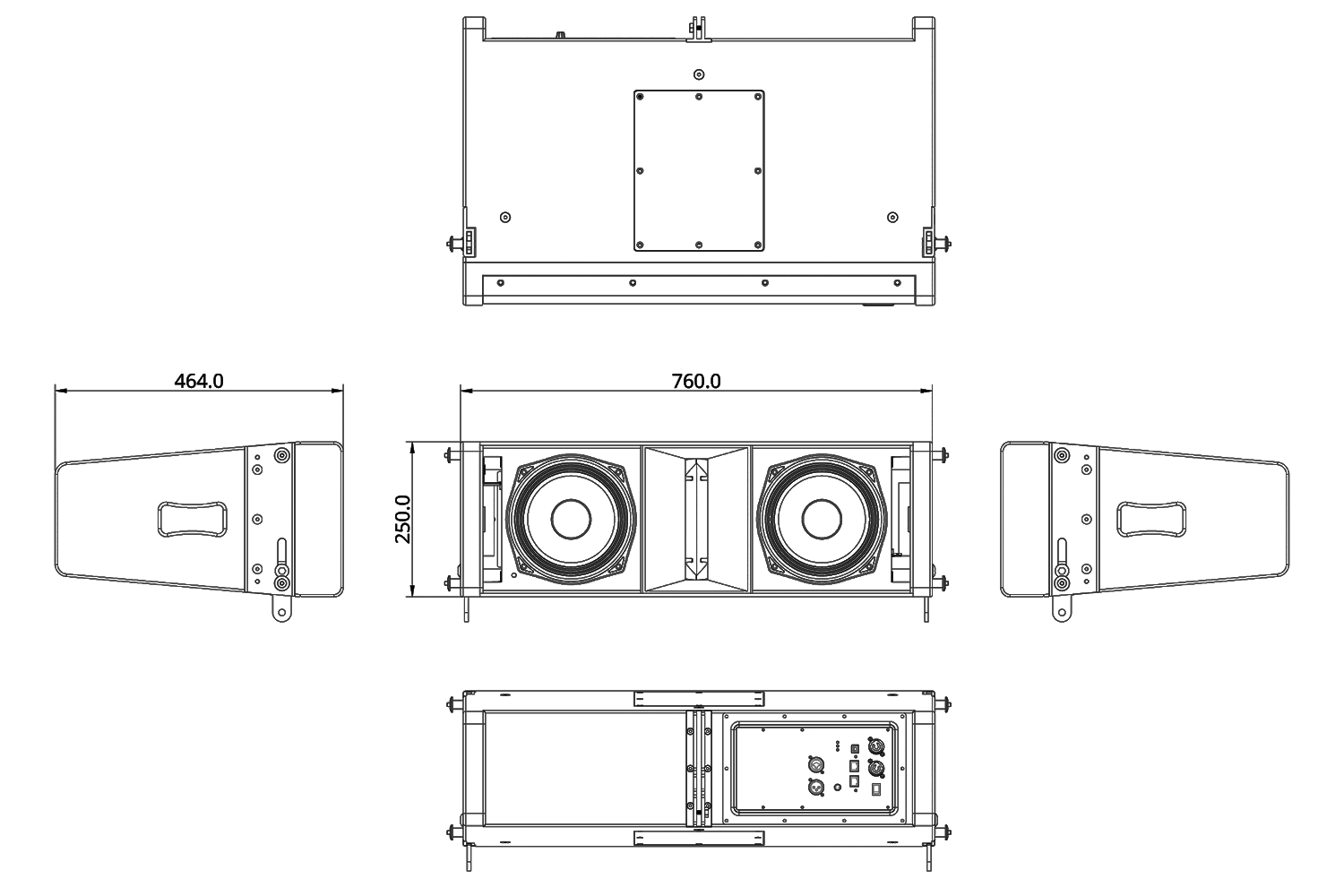

Unpacked dimensions – Height 250 mm / 9.84″ 181 mm / 7.1″
Width (Front) 760 mm / 29.92″
Width (Back) 760 mm / 29.92″
Depth 463.2 mm / 18.23″
Packed Dimensions – Height 320 mm / 12.6″
Width (Front) 830 mm / 32.7″
Width (Back) 830 mm / 32.7″
Depth 534 mm / 21.0″
Net Weight (Kg / lbs) 30.2 Kg / 66.4 lbs
Gross Weight (Kg / lbs) 32.5 Kg / 71.5 lbs
