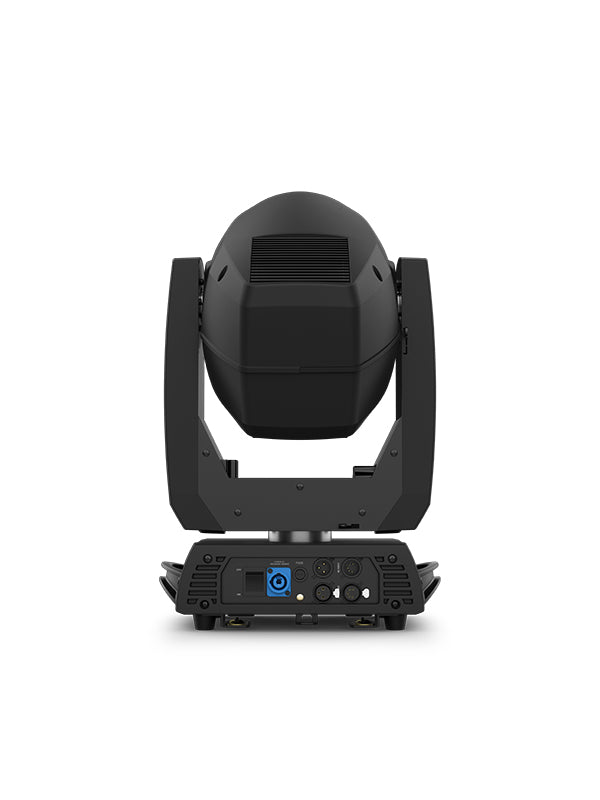

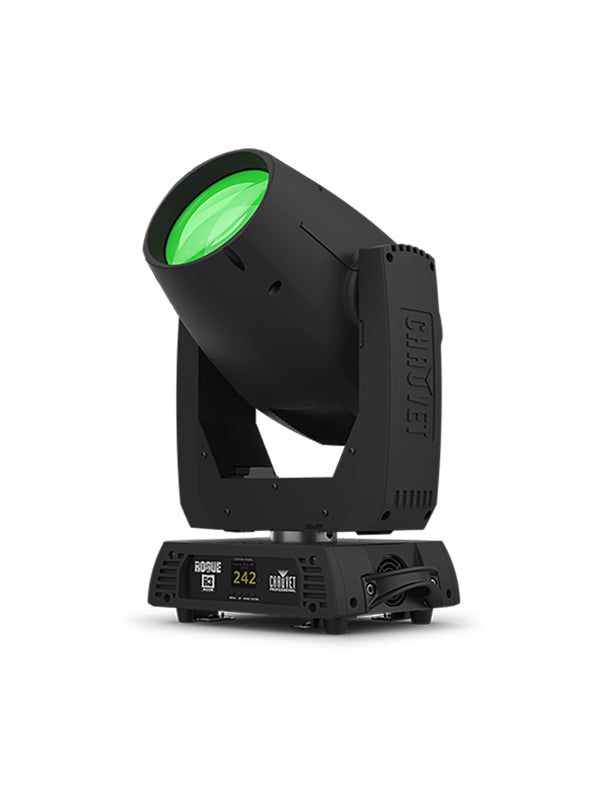

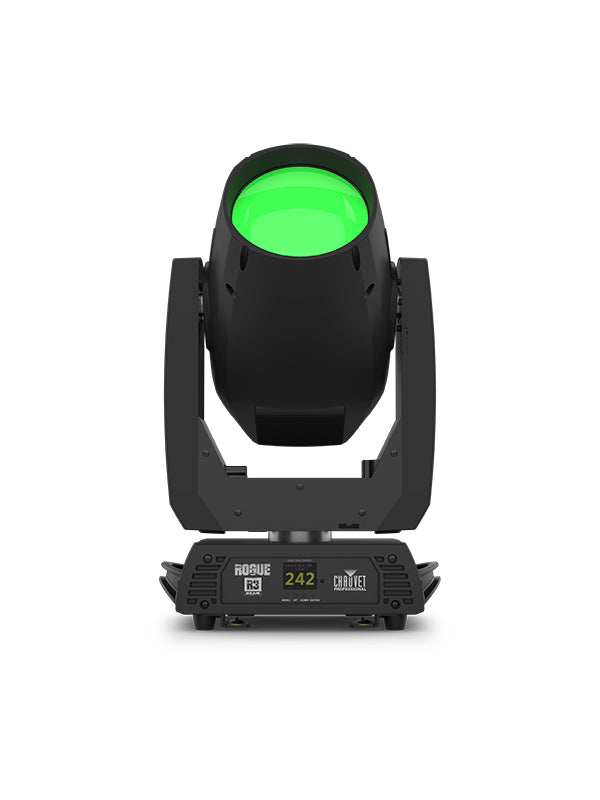

Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.
Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life
Fast and precise movement of pan and tilt functions
Individually controllable and layerable 8- and 24-facet prisms
Frost for even light distribution
Tight 0.8° beam for extremely focused areal effects
RDM enabled for remote addressing and troubleshooting
17 static gobos for massive visual impact
OPTICAL
Light Source: 300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancyColor Temperature (at full): 7657 KCRI: 80.8Front Lens Diameter: 153 mmBeam Angle: 0.8°Field Angle: 1.6°Cutoff Angle: 2°Lumens – Output: 30,878Illuminance (total): 208,006 lux @ 15 m
DYNAMIC EFFECTS
Pan and Tilt: 540°/270°Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 270° tiltColors: 14 + white, split colors, continuous scroll at variable speedsGobos : 17 + open (17 metal), continuous scroll at variable speedsDimmer: MotorizedShutter/Strobe: MotorizedFocus: MotorizedFrost: MotorizedPrism: 8 facets, motorized, rotatingPrism: 24 facets, motorized, rotatingStrobe Rate: 0 to 15 HzMove in Black: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 12.79 x 8.66 x 21.65 in (325 x 220 x 550 mm)Weight: 34.4 lb (15.6kg)Exterior Color: BlackHousing Material: High-impact flame-retardant polymer
CONNECTIONS
Power Connection: Edison (Local) plug to NeutrikPower Input: Neutrik powerCONPower Output: Neutrik® powerCON®Data Connectors: 3- and 5-pin XLRCable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDMDMX Channels: 16 or 19Modes/Personalities: 2 personalities (16, 19)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power and Current: 422 W, 4.20 A @ 100 V, 60 HzPower and Current: 418 W, 3.55 A @ 120 V, 60 HzPower and Current: 411 W, 1.98 A @ 208 V, 60 HzPower and Current: 411 W, 1.78 A @ 230 V, 50 HzPower and Current: 406 W, 1.68 A @ 240 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, UKCAIP Rating: IP20, dry locationTemperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
