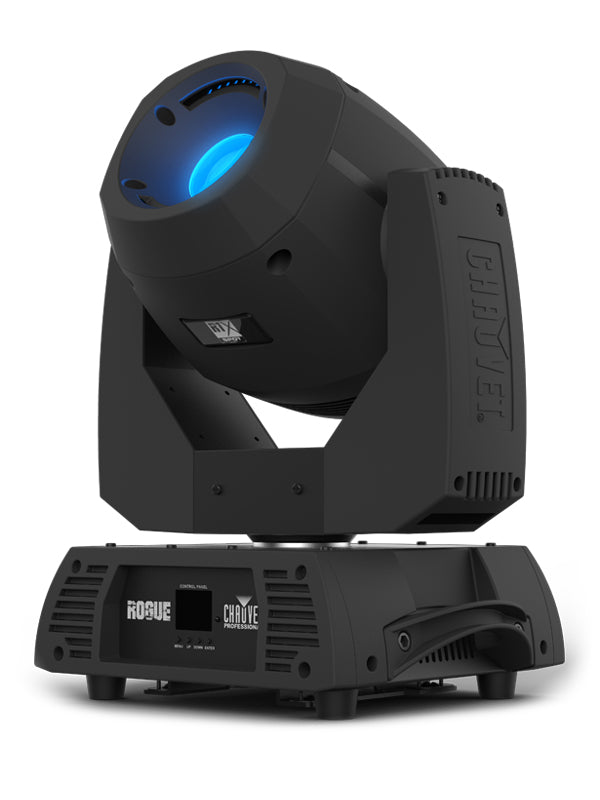

Rogue R1X Spot brings innovation and creativity with a rotating 3-facet prism for stunning aerial effects, a motorized iris and focus for beam shaping, as well as two gobo wheels, one of which rotates and has 7 interchangeable gobos for custom looks. Rogue R1X Spot shines brightly with a 170 W LED light source in a 14° beam angle for crisp gobo projections in a range of eight beautiful colors.
AT A GLANCE
Bold, bright 170 W LED light engine for punchy, solid beams
Color wheel with 8 colors, split color ability, and continuous variable-speed scrolling
Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
Iris and 3-facet prism for stunning visual effects
Neutrik® powerCON® power input/output connections for power linking
3- and 5-pin DMX input/output connections
RDM enabled for remote addressing and trouble shooting
Selectable LED maximum output to match legacy Rogue R1 Spots
Selectable PWM settings to maintain flicker free operation on camera
Simple and complex DMX channel profiles for programming versatility
SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (CW) 170 W, (7.4 A), 8847 K, 50,000 hours life expectancyColor Temperature (at full): 8847 KFront lens diameter: 65 mmCRI: 75.2Beam Angle: 14°Field Angle: 15.6°Cutoff Angle: 15.9°Lumens – Source: 12,000Lumens – Output: 5,479Illuminance (total): 4,388 lux @ 5 mSelectable LED Power output: 50-100Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
Pan and Tilt: 540°/250°Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tiltColors: 8 + white, split colors, continuous scroll at variable speedsGobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speedsGobos (2): 8 + open (8 metal),continuous scroll at variable speedsGobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 26.9 mm (outside), 22.5 mm (image), 0.5 mm (max. thickness)Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 25 mm (outside), 23 mm (image), 3 mm (max thickness)Dimmer: ElectronicShutter/Strobe: ElectronicFocus: MotorizedIris: MotorizedPrism: 3 Facets, motorized, rotatingStrobe Rate: 0 to 22 HzMove in Black: Yes
CONSTRUCTION / PHYSICAL
Dimensions (single unit): 11.10 x 14.20 x 17.60 in (282 x 360 x 447 mm)Weight (single unit): 37.6 lb (17.1 kg)Exterior Color: BlackHousing Material: High-impact flame-retardant polymer

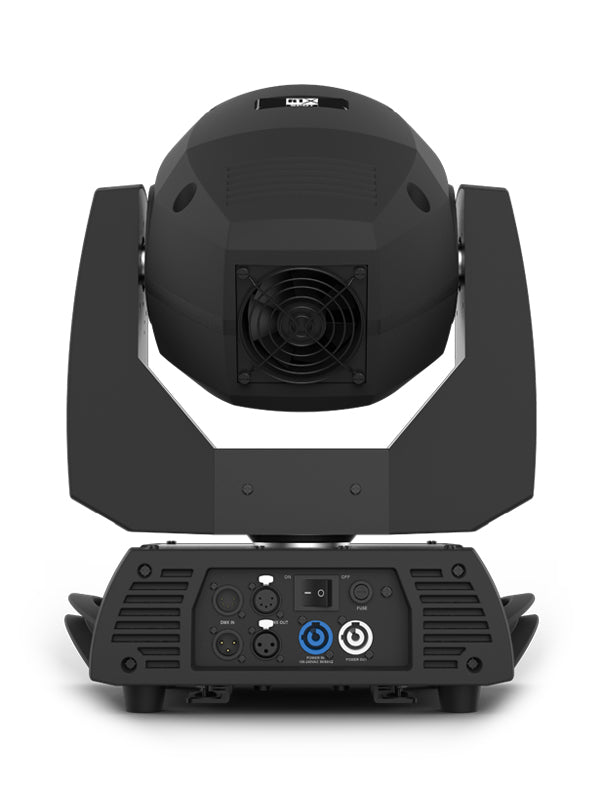

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik® powerCON®Power Input: Neutrik® powerCON®Power Output: Neutrik® powerCON®Data Connectors: 3- and 5-pin XLRCable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDMDMX Channels: 16 or 19Modes/Personalities: 2 personalities (16, 19)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking: 5 units @ 120 V; 8 units @ 208 V; 10 units @ 230 VPower and Current: 303 W, 2.34 A @ 120 V, 60 HzPower and Current: 297 W, 1.35 A @ 208 V, 60 HzPower and Current: 299 W, 1.20 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC, UKCAIP Rating: IP20, dry location
