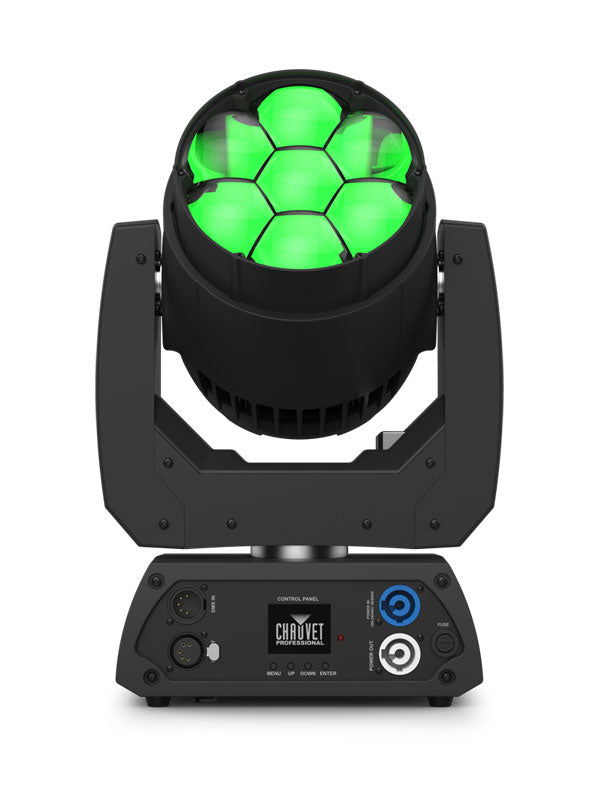

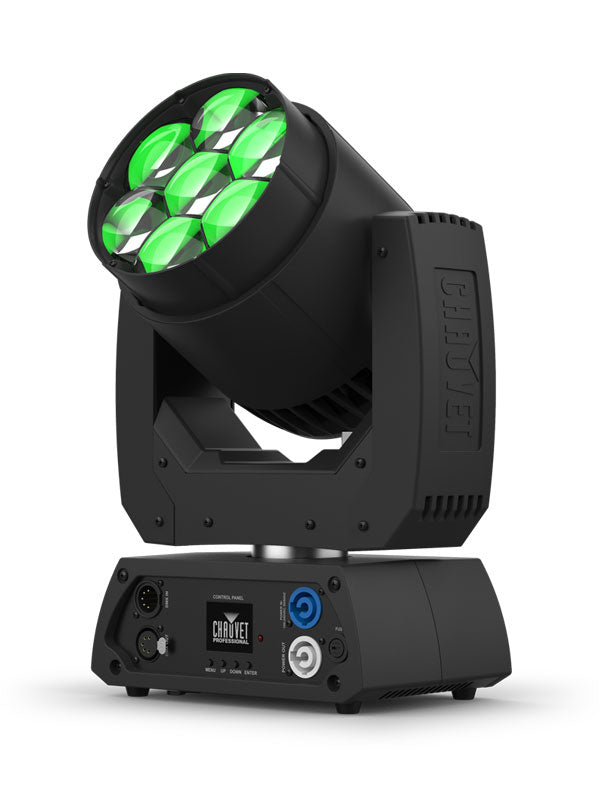

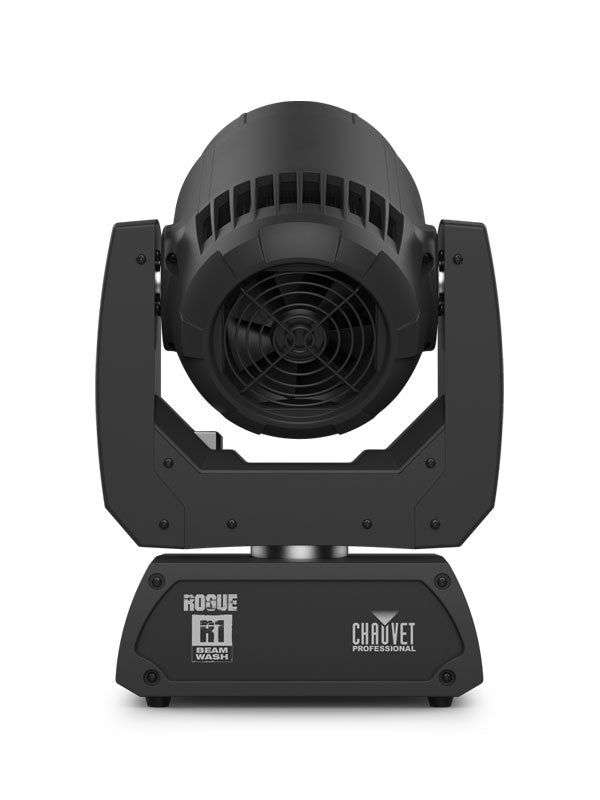

Chauvet Professional Rogue R1 BeamWash
Chauvet Professional Rogue R1 BeamWash
Chauvet Professional Rogue R1 BeamWash
Chauvet Professional Rogue R1 BeamWash
Roll over image to zoom in Click on image to zoom
Chauvet Professional Rogue R1 BeamWashChauvet Professional Rogue R1 BeamWashChauvet Professional Rogue R1 BeamWashChauvet Professional Rogue R1 BeamWash

Chauvet Professional Rogue R1 BeamWash

Chauvet Professional
Price:
$4,100.00
Contact us for availability

Description

Rogue R1 BeamWash is a versatile and compact moving head that projects a punchy beam and wash. Weighing just under 5.5kg, the unit features a custom-designed optical system with seven, 40W RGBW LEDs and an expansive zoom range of 3.4° to 67.7° that allows for it to project tight, solid beam effects at its most narrow and transforms the light source into a nice even wash with excellent color blending as it expands. The unit’s small size also allows for a superfast and smooth pan and tilt movement. It’s also RDM enabled for remote addressing and is equipped with a selectable PWM setting to maintain flicker free operation on camera.

  • Fully-featured RGBW LED yoke wash fixture with zoom
  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
  • 7 RGBW LEDs, 40 W each
  • 5-pin DMX input/output connections
  • Unique lens design for excellent color blending and tight beam effects
  • Extremely fast, smooth pan and tilt movement
  • RDM enabled for remote addressing and trouble shooting
  • Selectable PWM settings for camera operation
  • User-selectable calibrated white for 7500 K at full output
  • User selectable red shift in all dimming modes to emulate tungsten fixtures
  • 6 distinct dimming modes for advanced control
  • Omega mounting bracket fits all Rogue and Maverick fixtures
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility
OPTICAL
  • Light Source: 7 LEDs (quad-color RGBW) 40 W, (980 mA), 50,000 hours life expectancy
  • Color Temperature (range): 2800 to 10000 K
  • Beam Angle: 4° to 37.8°
  • Field Angle: 5° to 58.2°
  • Cutoff Angle: 5.5° to 67.7°
  • Zoom Range: 3.4° to 67.7°
  • Lumens – Source: 5,400
  • Lumens – Output: 3,967 Wide
  • Illuminance (5°): 13,939 lux @ 5 m
  • Illuminance (55°): 383 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Color Mixing: Yes
  • Color Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)
  • Weight: 11.8 lb (5.35 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 14, 15, 19 or 21
  • Modes/Personalities: 4 personalities (14, 15, 19, 21)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 5 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
  • Power and Current: 285 W, 2.38 A @ 120 V, 60 Hz
  • Power and Current: 284 W, 1.37 A @ 208 V, 60 Hz
  • Power and Current: 284 W, 1.23 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

WHAT'S INCLUDED

  • Rogue R1 BeamWash
  • Neutrik® powerCON® power cord
  • Omega bracket with mounting hardware
