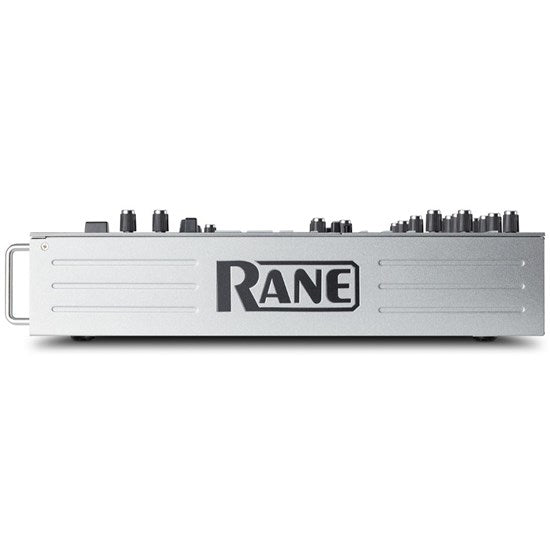

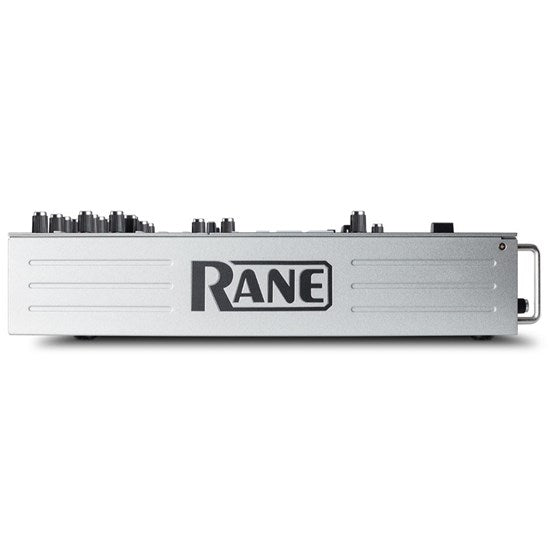

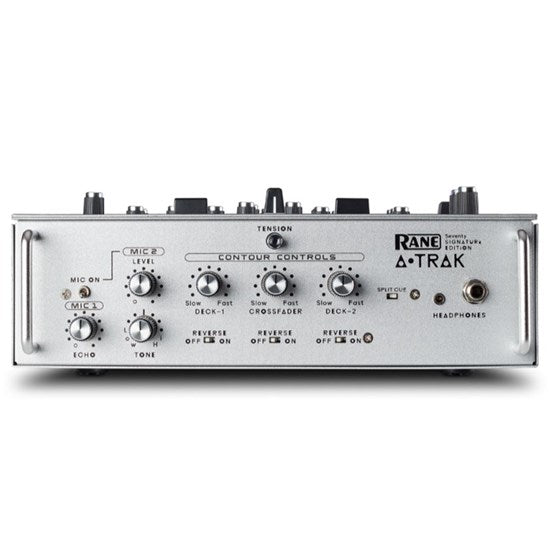

Rane SEVENTY - ATRAK Edition 2-Channel Precision Performance Battle Mixer for Serato DJ



The SEVENTY A-TRAK SIGNATURE EDITION boasts a stunning silver finish and aluminium-capped knobs and encoders, plus custom font-faces & elements. The sound crafted by A-Trak himself offers high-quality audio and increased depth. Fader FX feature lets DJs customize effects like Filter, Roll, Pitch and more. Built on the solid foundation of the original SEVENTY, it features MAG FOUR faders, MPC-style Performance Pads and easy access to Serato’s Scratch Bank, external crossfader tension and 6 Flex FX.



Features

• Intuitive High-Performance Layout.

• (3) MAG FOUR contactless faders.

• External crossfader tension-adjustment control.

• Solid steel construction & front guard handle protection.

• (6) Dual post-fader internal FLEX FX engines.

• Serato DJ FX controls.

• Independent pad modes for each channel.

• (32) MIDI-Assignable Pads.

• Browse and track select controls.

• Intuitive Instant Double buttons, toggle as Sync On-Off or Silent Cue mode.

• Dedicated loop controls.

• Dual diecast aluminum 180° rotatable FX paddles.

• RANE TWELVE Connection Hub.

• Dual microphone inputs.

• Industry leading signal-to-noise ratio of 114dB.

• Dual USB connections for DJ handoffs.

• 16 Akai Professional MPC performance pads.

Digital Audio
Converters	AKM High Definition Audio; 24-bit PCM, 48 kHz
Digital Signal Processing	32-bit, floating point, double precision
Dynamic Range (A-weighted, unity gain)	ADC: 114 dB DAC: 114 dB CD Input to Analog Output: 111 dB CD Input to USB Output: 114 dB USB Input to Analog Output: 114 dB
Inputs
Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS, Mic/Line switchable)	Analog Gain: 30 dB (Mic), 4.75 dB (Line) Maximum Input: 0.126 Vrms (Mic), 2.3 Vrms (Line) Gain Trim: Off to +20 dB (unity at center)
Aux Inputs 1/2 (RCA stereo pairs)	Maximum Input: 4 Vrms Dynamic Range (A-weighted): 114 dB
CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)	CD: Line Maximum Input: 4 Vrms Dynamic Range (A-weighted): 114 dB Phono: RIAA RIAA Curve: +0.1/-0.2 dB Gain (@ 1 kHz): 30 dB Maximum Input (@ 1 kHz): 126 mV
Session Input (RCA stereo pair)	Maximum Input: 4 Vrms Dynamic Range (A-weighted): 114 dB
Outputs
Main Outputs (XLR)	Frequency Response: 20 Hz to 20 kHz (± 0.2 dB) Maximum Output: 8 Vrms THD+N (@ 1 kHz, 4 Vrms): 0.002%
Booth Outputs (1/4"/6.35 mm TRS)	Frequency Response: 20 Hz to 20 kHz (± 0.2 dB) Maximum Output: 8 Vrms THD+N (@ 1 kHz, 4 Vrms): 0.002%
Session Outputs (RCA stereo pair)	Frequency Response: 20 Hz to 20 kHz (± 0.2 dB) Maximum Output: 8 Vrms THD+N (@ 1 kHz, 4 Vrms): 0.002%
Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS)	Maximum Output Voltage: 4 V (no load) THD+N (@ 1 kHz, 2 Vrms): 0.003% Output Power: 96 mW (50 ohms) Controls: On/Off muting
General
Display	1.6" OLED (diagonal)
Pads	(16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
Faders	(3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)
Connectors	(2) XLR outputs (Main) (2) 1/4" (6.35 mm) TRS outputs (Booth) (4) RCA stereo input pairs (Deck 1–2) (2) XLR / 1/4" (6.35 mm) TRS inputs (Mic 1–2) (1) RCA stereo input pair (Session) (1) RCA stereo output pair (Session) (1) 1/4" (6.35 mm) TRS output (Headphones) (1) 1/8" (3.5 mm) TRS output (Headphones) (1) 1/4" (6.35 mm) TRS input (Footswitch) (2) USB Type-A ports (Deck 1–2 USB Controllers) (2) USB Type-B ports (1) IEC power cable input
Power	Connection: IEC Voltage: 100–240 V, 50/60 Hz Consumption: 30 W
Dimensions (width x depth x height)	11.2" x 17.5" x 4.13" 285 x 445 x 105 mm
Weight	12.3 lbs. 5.6 kg
