Designed for creativity and built to last, RANE FOUR is an advanced 4-channel stem DJ controller for unleashing exciting levels of creativity. Combining the latest performance-focused tech with RANE's renowned sound quality and build, it offers unparalleled Serato Stems control via a dedicated Stems Pad Mode, Instrumental/Acapella buttons and STEM-SPLIT feature. Boasting a dynamic internal FX engine with 22 triggered effects and 4 knob-controlled Channel FX, the FOUR can switch seamlessly between hardware and software FX. Its mixer section includes full EQ control, intuitive FX assignment, external Line/Phono inputs, DVS capability, plus enhanced Sampler routing options. The 8 OLED displays above the Performance Pads give visual feedback for all pad modes, while the 8.5" jog wheels are precise and responsive. Built to RANE's standards, its solid construction and Mag-FOUR crossfader provide lasting performance.
- The world's most advanced Serato Stems DJ controller with dedicated Stems pad mode, independent Acapella/Instrumental buttons, and exclusive STEM-SPLIT feature.
- Dynamic internal FX engine with 22 MAIN FX, 4 knob-controlled CHANNEL FX, and access to Serato DJ software FX.
- 16 Performance Pads with dedicated OLED Pad Mode displays for visual feedback.
- Full size, 8.5" high-resolution capacitive static platters with full-color center display.
- 4-channel mixer section and deck selection buttons for mixing with up to 4 software decks.
- 2 Line/Phono inputs for turntables or external decks.
- Tension-adjustable MAG FOUR crossfader.
- Dual-USB for seamless DJ transitions.
- XLR & RCA Main out, 1/4" Booth/Zone out, (2) stereo RCA line/phono inputs, and (2) XLR 1/4" combo jack microphone inputs.
- Trusted RANE build and no-compromise sound quality.
| Digital Audio | Converters: Cirrus Logic, 24-bit PCM, 48 kHz Digital Signal Processing: 32-bit, Floating Point, Double precision Dynamic Range (A-weighted, unity gain): ADC: 113 dB DAC: 113 dB CD Input to Analog Output: 110 dB CD Input to USB Output: 113 dB USB Input to Analog Output: 113 dB |
|---|---|

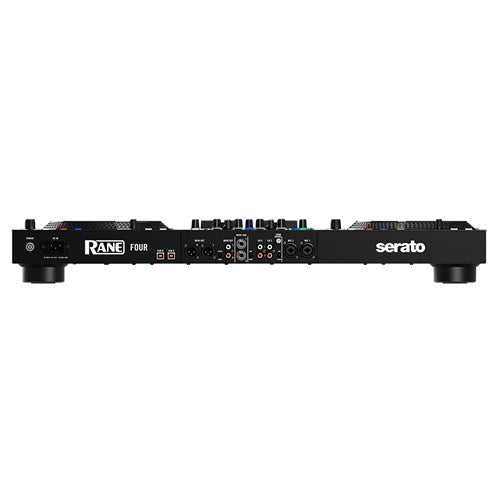

| Connections | (2) XLR outputs (Main) (2) 1/4" outputs (Booth) (1) RCA stereo output pair (Main) (2) XLR / 1/4" (6.35 mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 3-4) (1) 1/4" (6.35 mm) TRS output (Headphones) (1) 1/8" (3.5 mm) TRS output (Headphones) (2) USB Type-B ports (1) IEC power cable input |
| Audio Outputs | Main Outputs (XLR): Gain Trim: Off to 0 dB Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz Main Outputs (RCA stereo pair): Maximum Output: 4 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz Booth Outputs (1/4"): Gain Trim: Off to 0 dB Maximum Output: 8 Vrms THD+N (20 kHz BW @ 1 kHz): 0.004% Frequency Response: Flat - 20-20kHz Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS): Maximum Output: 4 Vrms Voltage: (no load) Output Power: 50 mW (50 ohms) Dynamic Range (A-weighted): 108 dB |
| Audio Inputs | Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS): Analog Gain: 25 dB Maximum Input: 110 mV Gain Trim: Off to +26 dB (unity at center) Tone Control: 2-band Line/Phono Inputs 3/4 (RCA stereo pairs, switchable): Line: Line Maximum Input: 4 Vrms Gain Trim: Off to +12 dB Tone Control: 3-band, full-cut to +10 dB THD+N (20 kHz BW @ 1 kHz: 0.004% Phono: RIAA RIAA Curve: +/-0.25 dB Gain (@ 1 kHz): 31.5 dB Maximum Input (@ 1 kHz): 106 mV Dynamic Range (A-weighted): 102 dB |
| Pads | (16) on/off multi-color back-lit pads (8 per deck, 9 modes each) |
| Wheel Displays | (2) 320 x 240 Color LCD's |
| Pad & FX Displays | (9) 128 x 32 Monochrome OLED's |
| Faders | (1) MAG FOUR tension-adjustable crossfader with contour (4) Standard channel faders |
| Power | Connection: IEC Voltage: 100–240 V, 50/60 Hz Consumption: 20 W |
| Dimensions (width x depth x height): | 30.8" x 15.9" x 4.2" 782.32 x 403.8 x 106.6 mm |
| Weight | 18.25 lbs. 8.27 kg |
