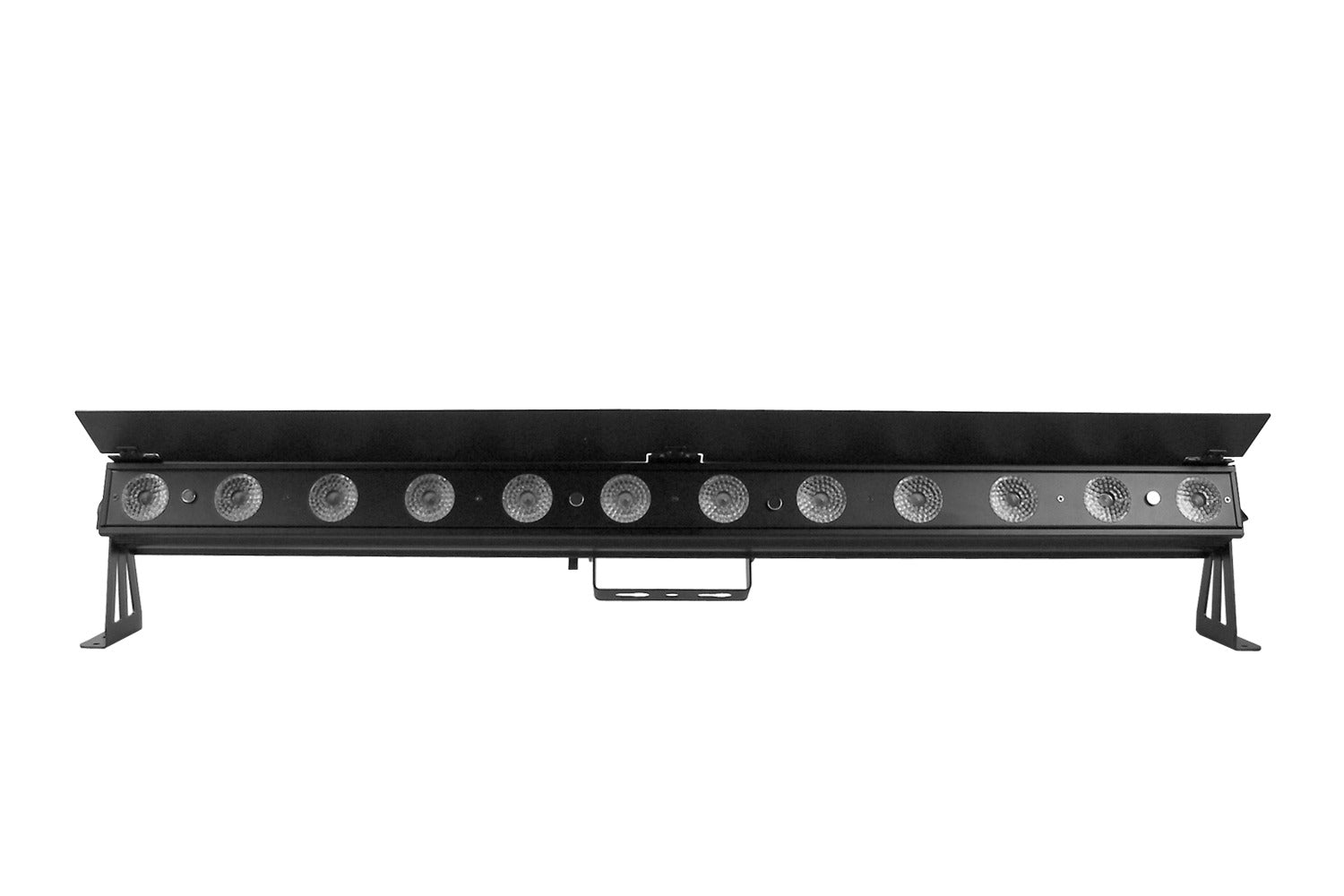

Event Lighting PIXBAR12H - 12 x 12W RGBWAU with Barndoor & Frost Filter


Price:
Sale price$825.00
Contact us for availability

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

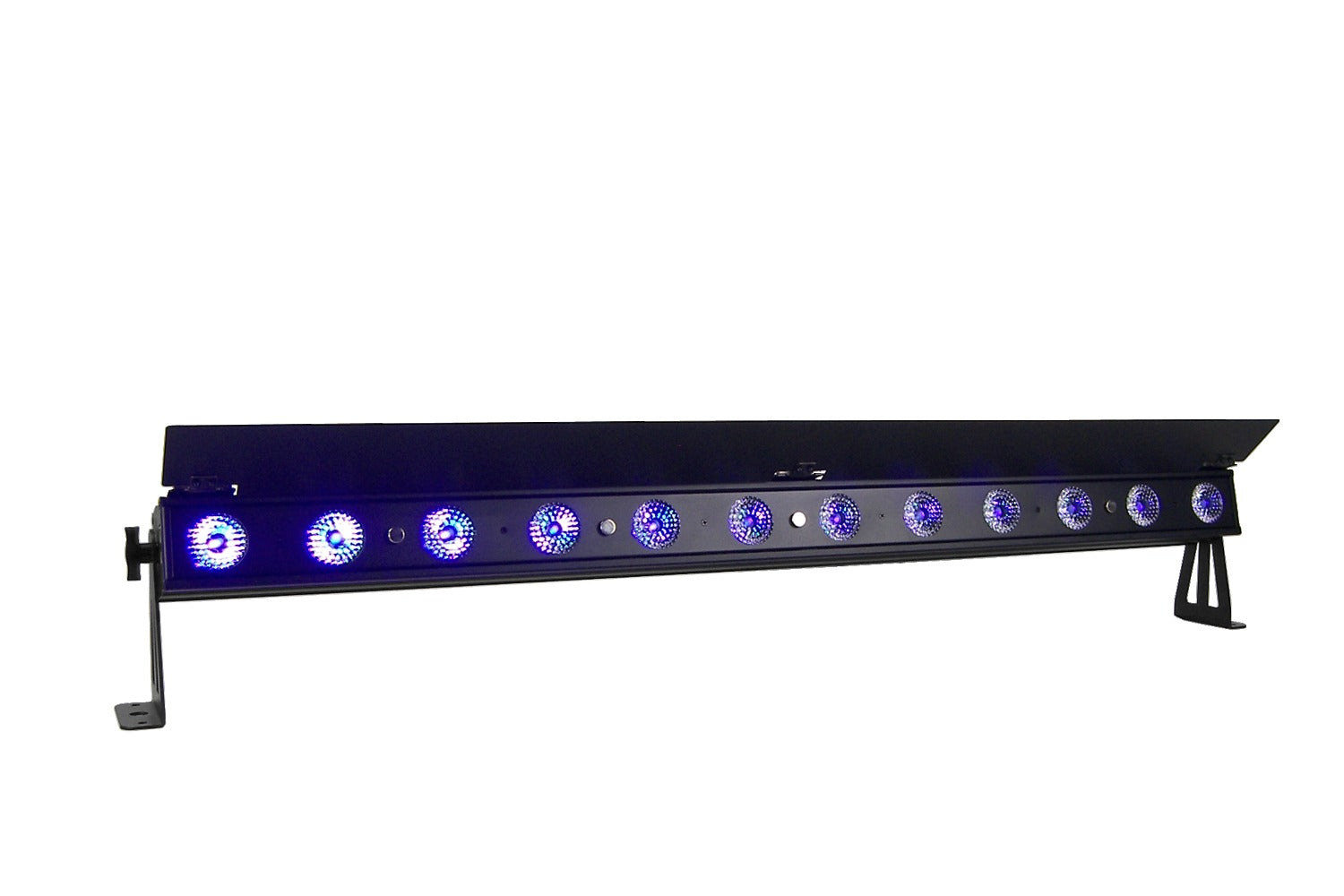

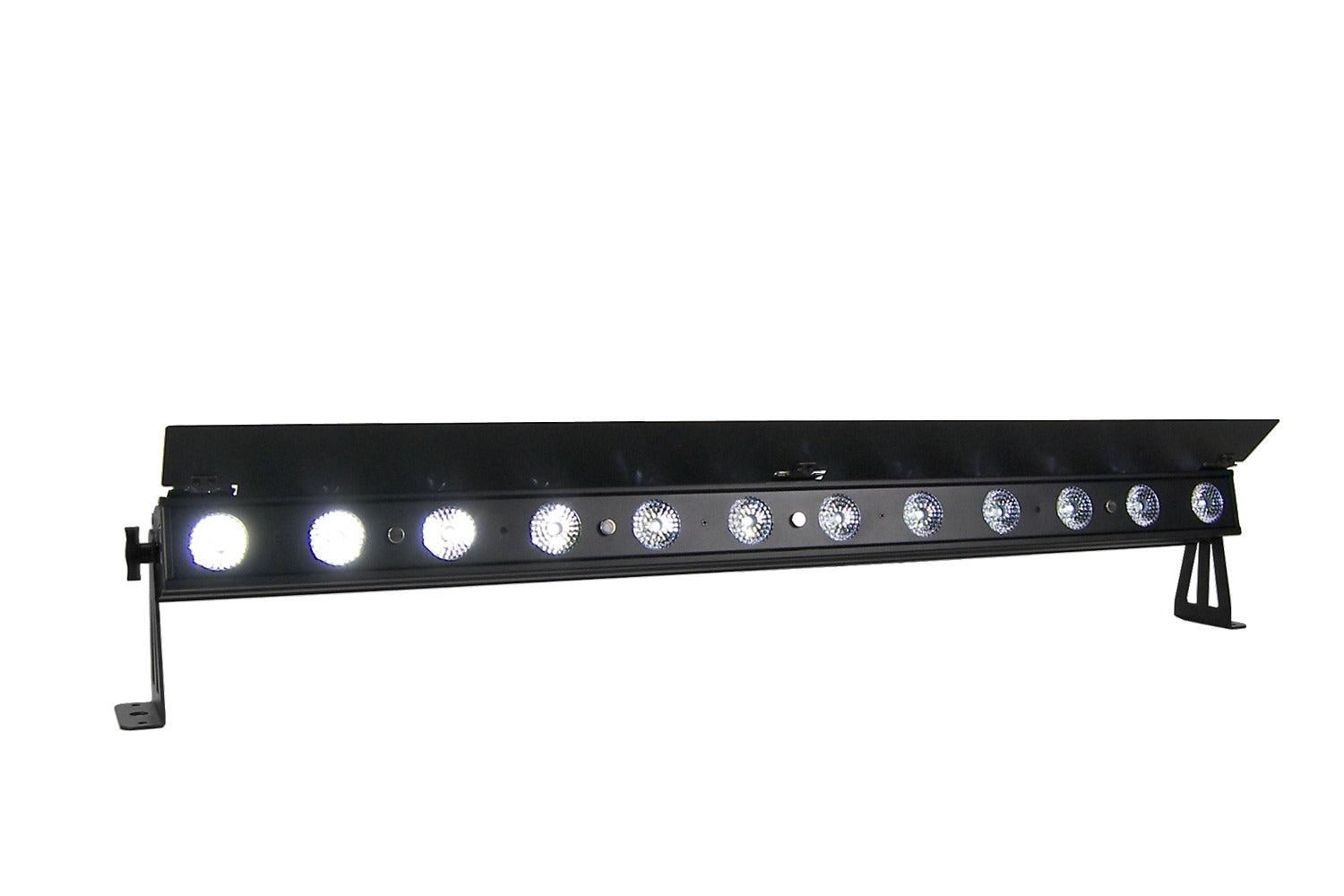

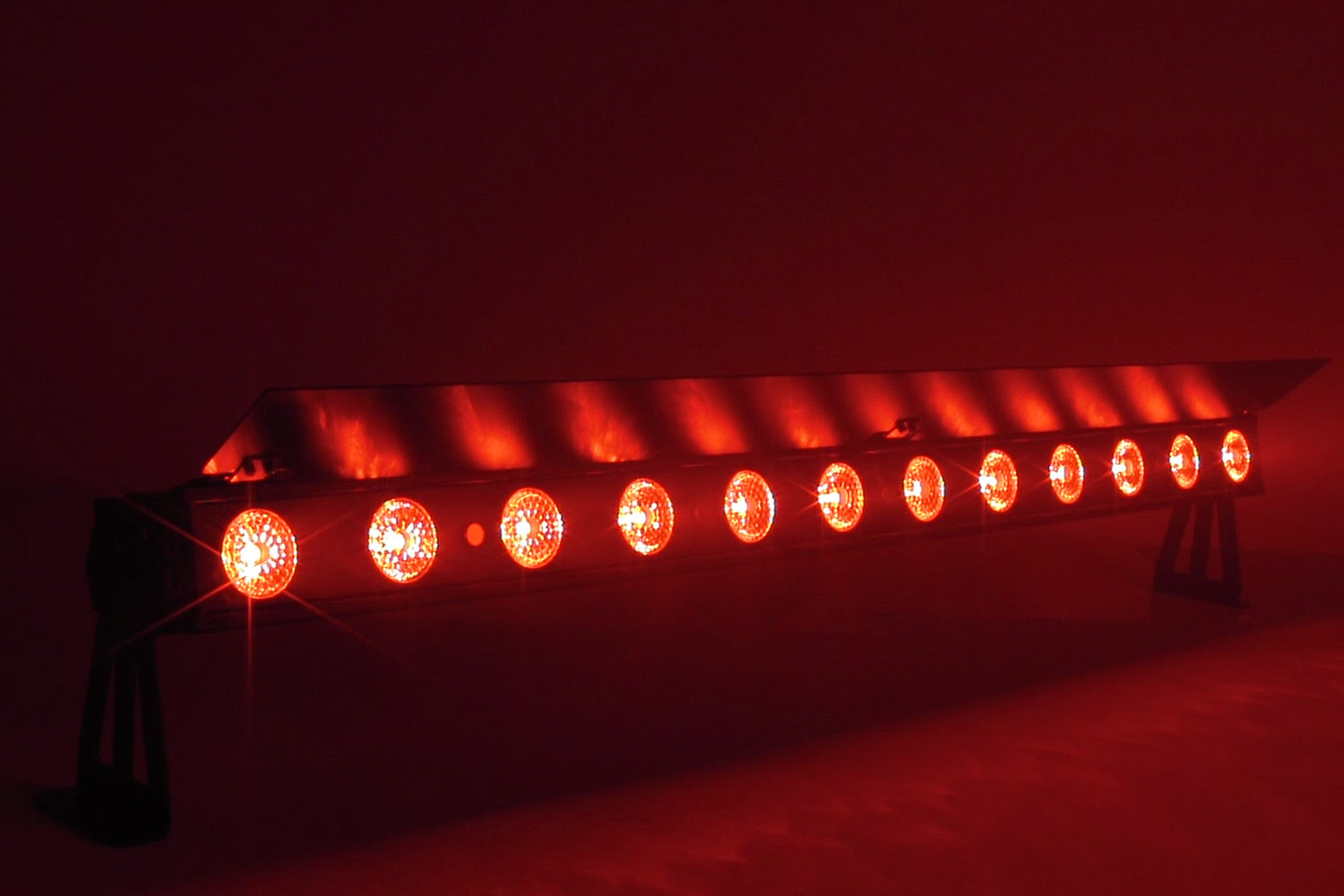

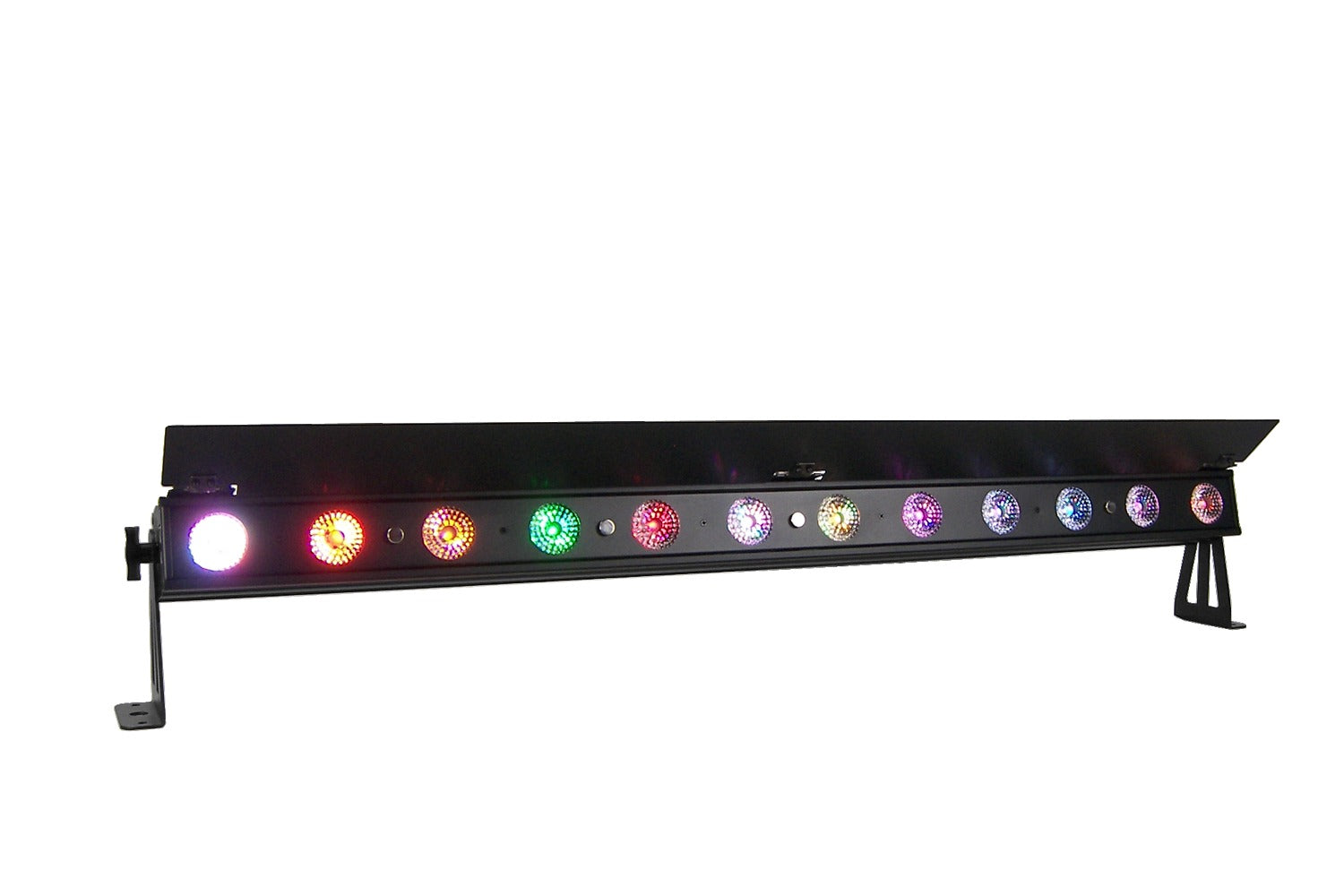

The Event Lighting PIXBAR12H is a brilliant lighting companion for any event or production. Featuring 12 x 12W RGBWAU LEDs, this pixel bar delivers a stunning array of vibrant colours and dynamic effects. With a beam angle of 30° (optional 55°), you can precisely tailor the coverage to suit any venue or stage.

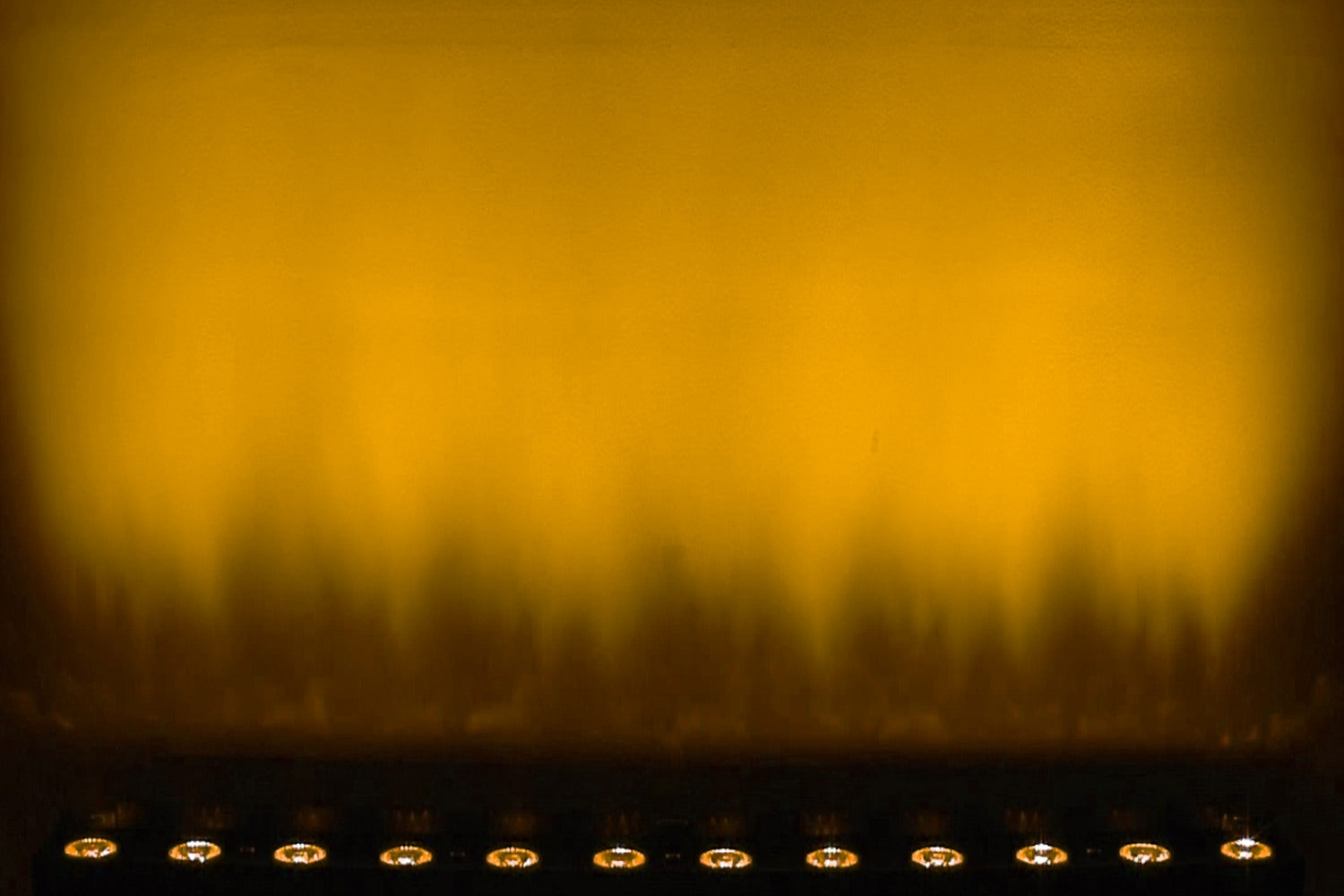

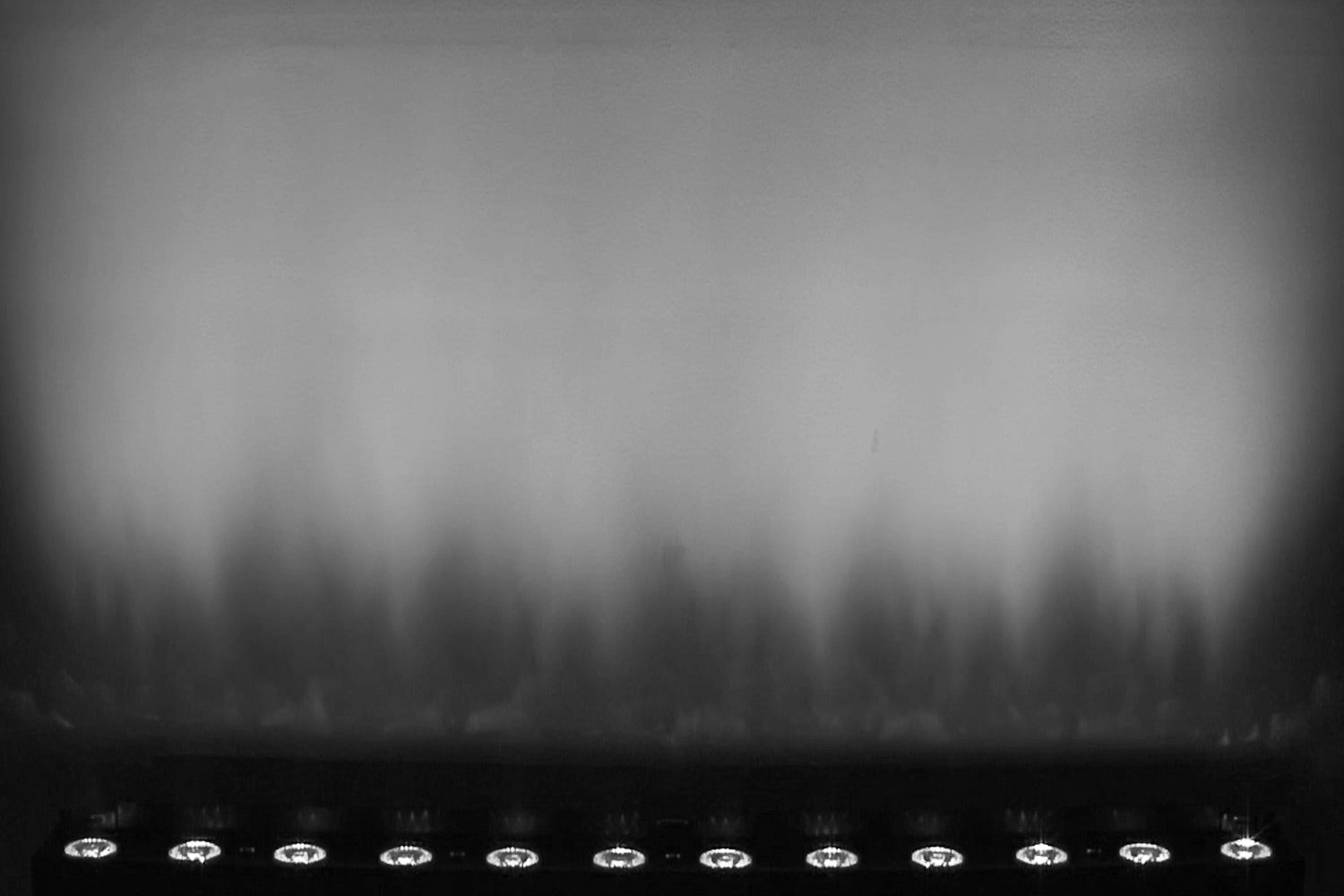

Experience dazzling illumination with an output of 2,050 lux at 2 meters when RGBWAU is in full swing. With 4 x 16-bit Dimming Curves and adjustable strobe settings from 1 to 30Hz, you have complete control over your lighting effects. Seamlessly switch between operational modes including DMX, manual, auto, and sound active, all accessible through the intuitive 4-button LCD control panel.

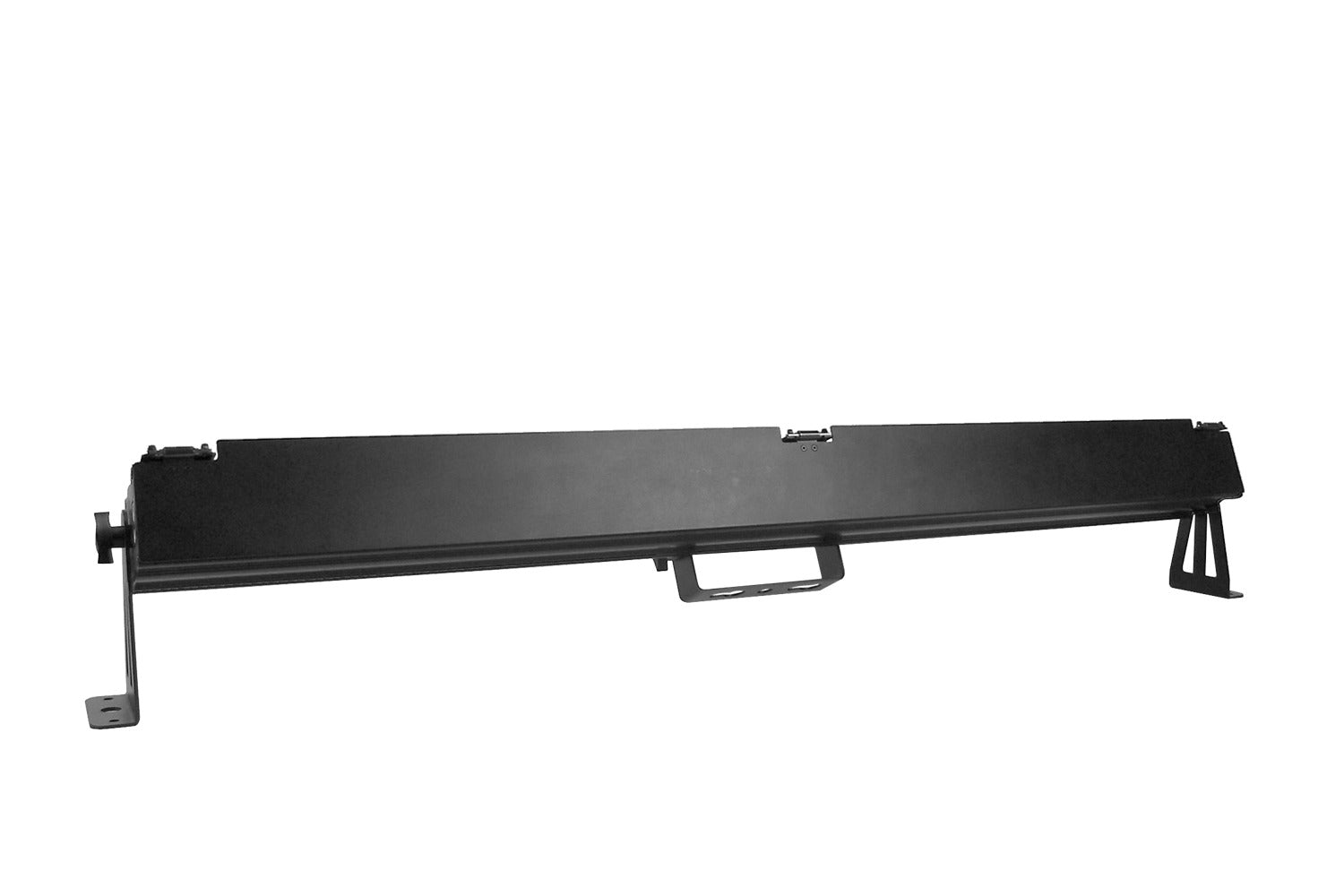

Crafted with durability in mind, the PIXBAR12H features a sturdy aluminium housing with a sleek matte black finish. The included barndoor and frost filter enhance versatility, allowing for precise light shaping and diffusion. With True1 in/out and 3/5 Pin DMX in/out, installation is quick and hassle-free. Equipped with fanless cooling and a compact design, this pixel bar ensures reliability and consistent performance in any environment.

Photometrics

  • Light Source: 12 x 12W RGBWAU LEDs
  • Beam Angle: 30° (optional: 55°)
  • Output: 2,050 lux @ 2m RGBWAU full on
  • PWM: 12,000Hz
  • LED Life: 50,000 hours

Effects

  • Dimming: 4 x 16-bit Dimming Curves
  • Strobe: 1~30Hz

Power

  • Input Voltages: 100~240V AC, 50/60Hz, 150W
  • Power Connection: True1 in/out

Control

  • Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase

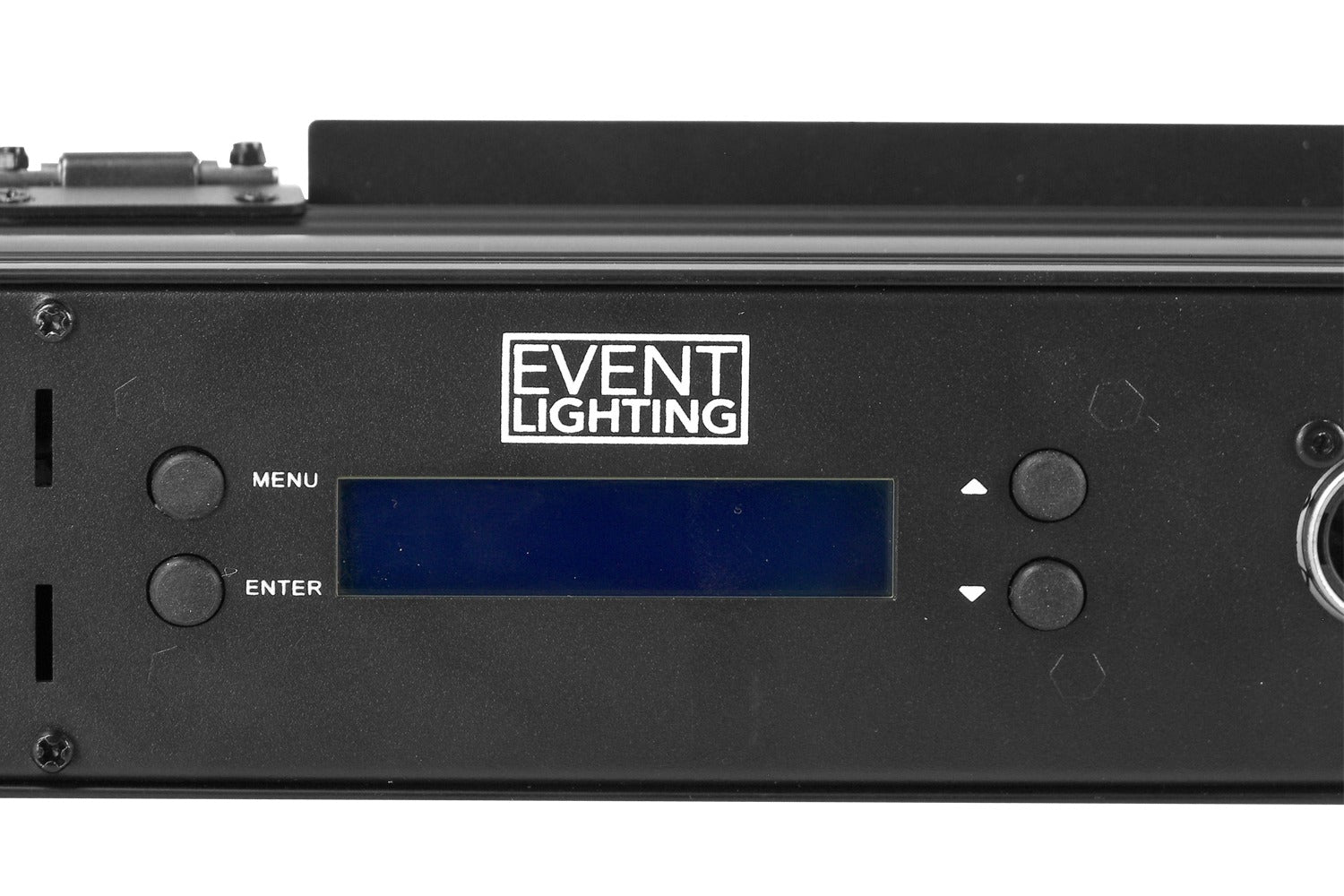

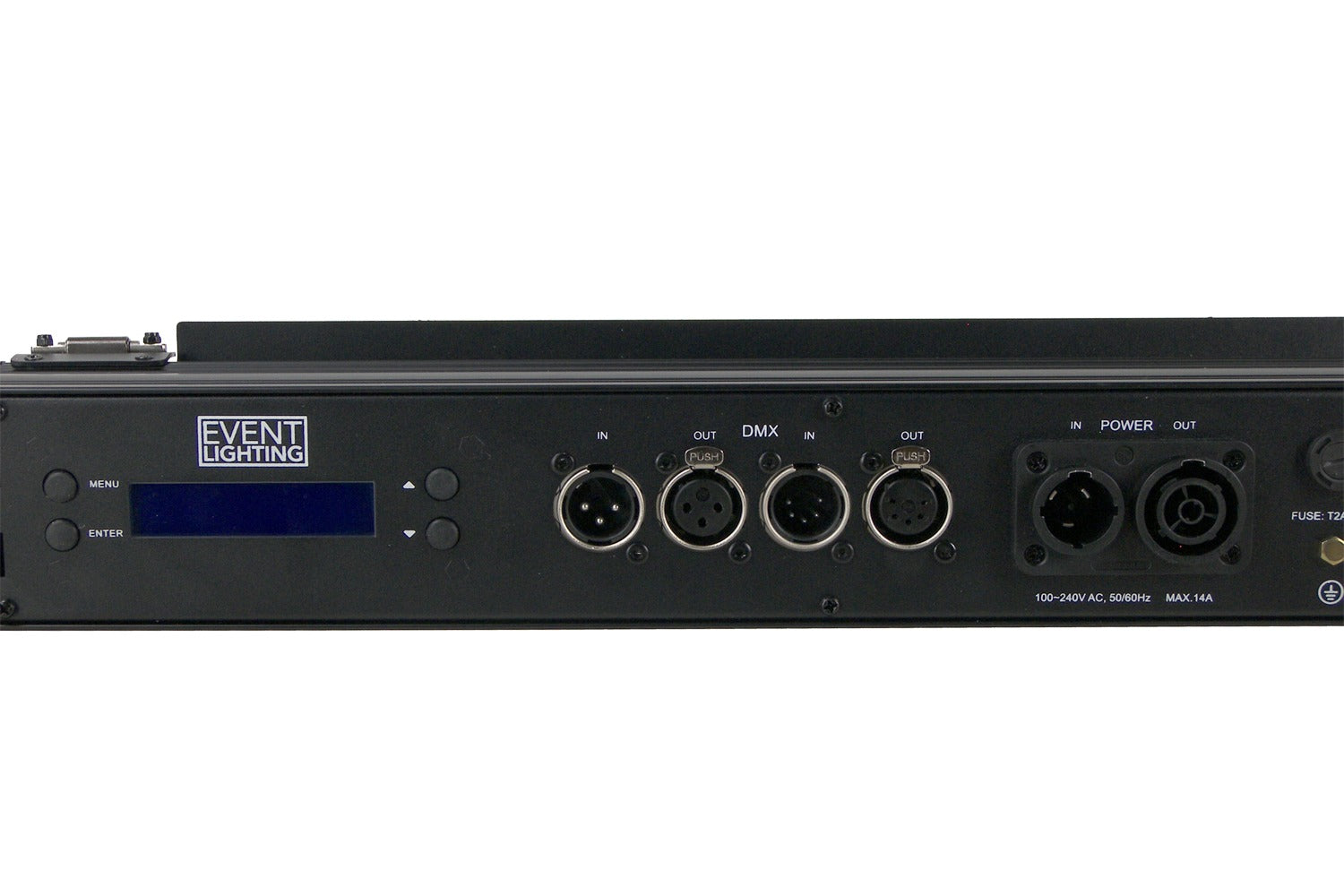

  • Display: 4-button LCD control panel
  • Control Protocol: DMX512
  • DMX Channels: 3 / 4 / 4A / 8 / 12 / 24 / 72 / 74

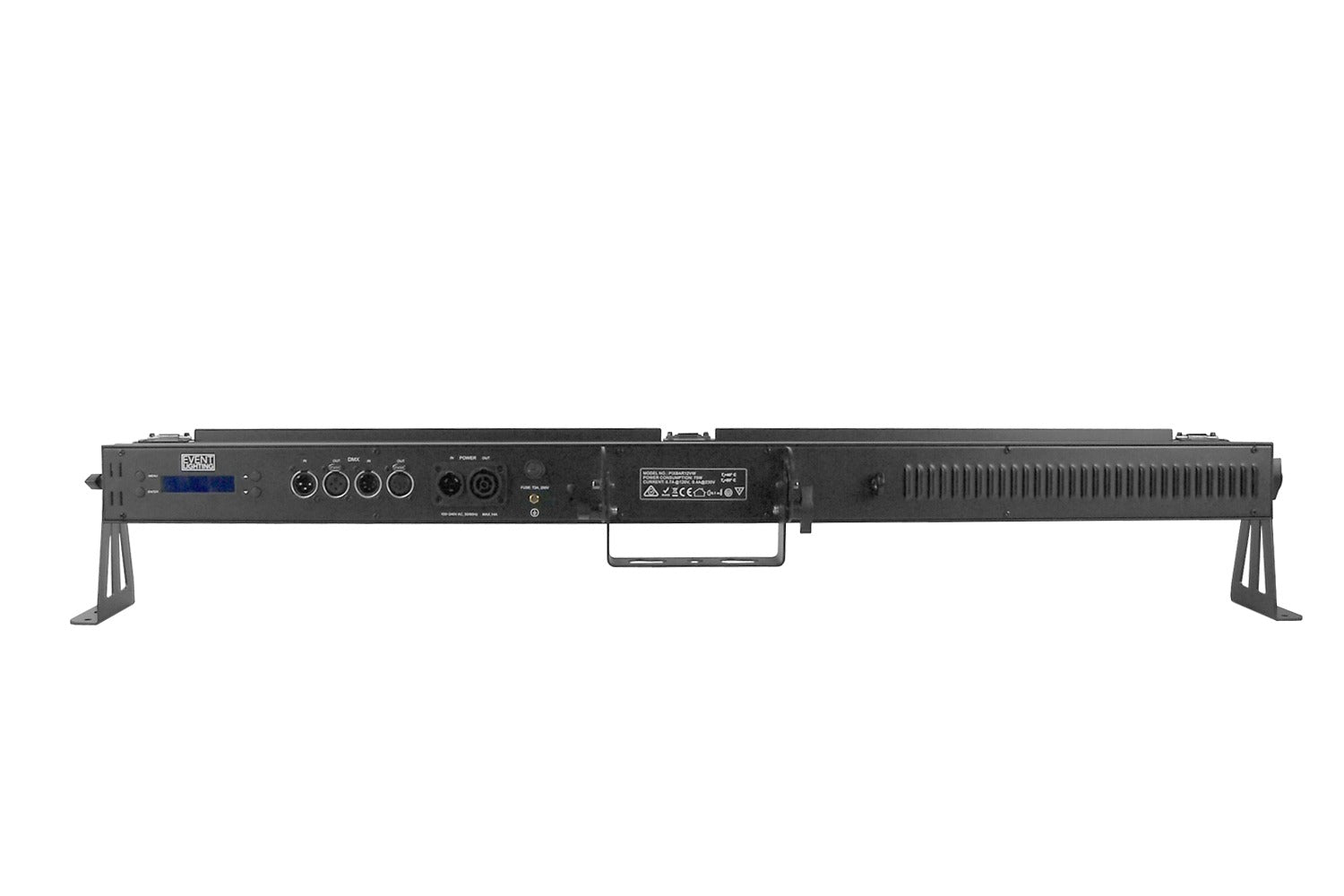

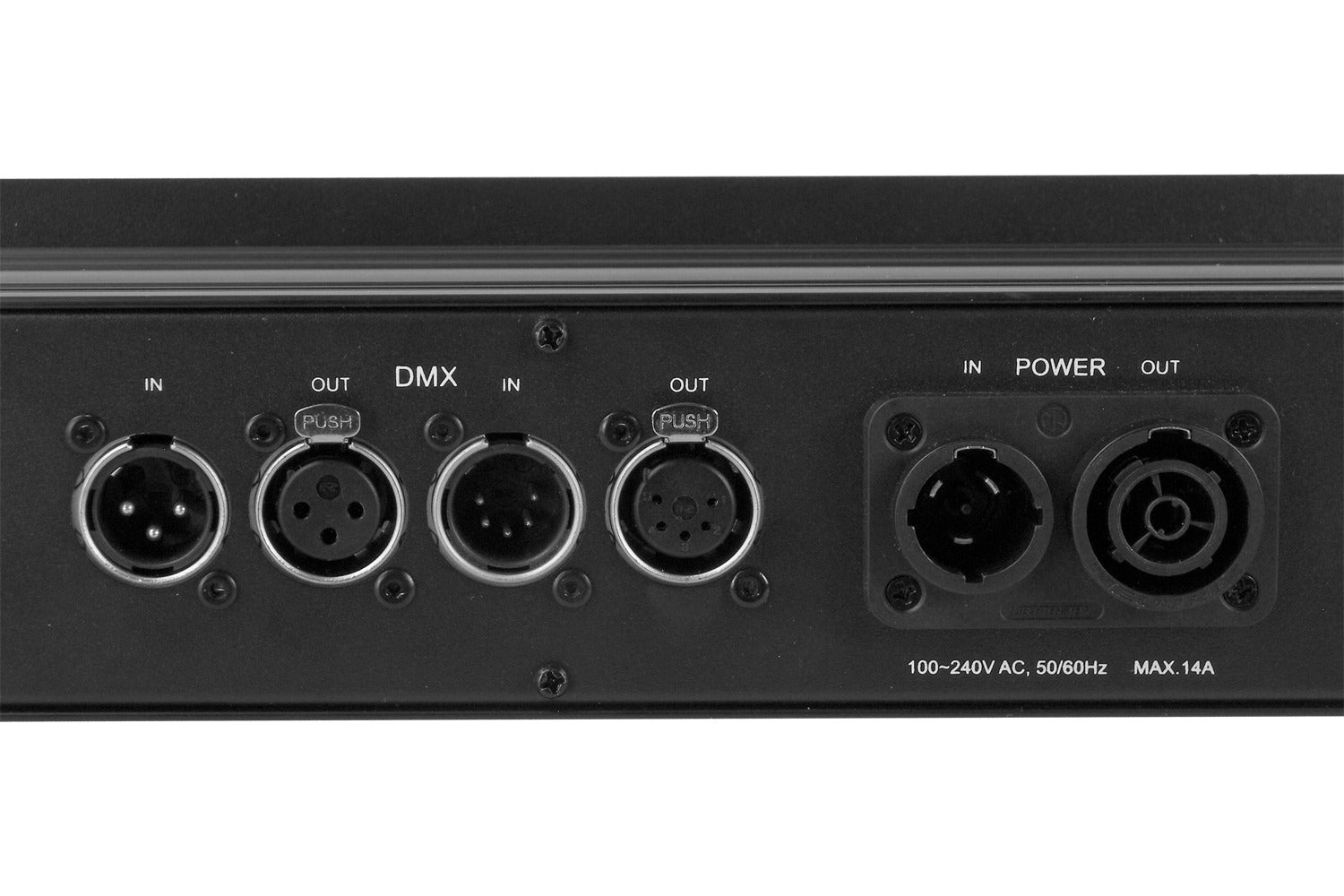

  • Control Interface: 3-pin and 5-pin XLR in/out
  • Software Upgrade via DMX: Yes

Housing

  • Housing Materials: Aluminium, matte black finish

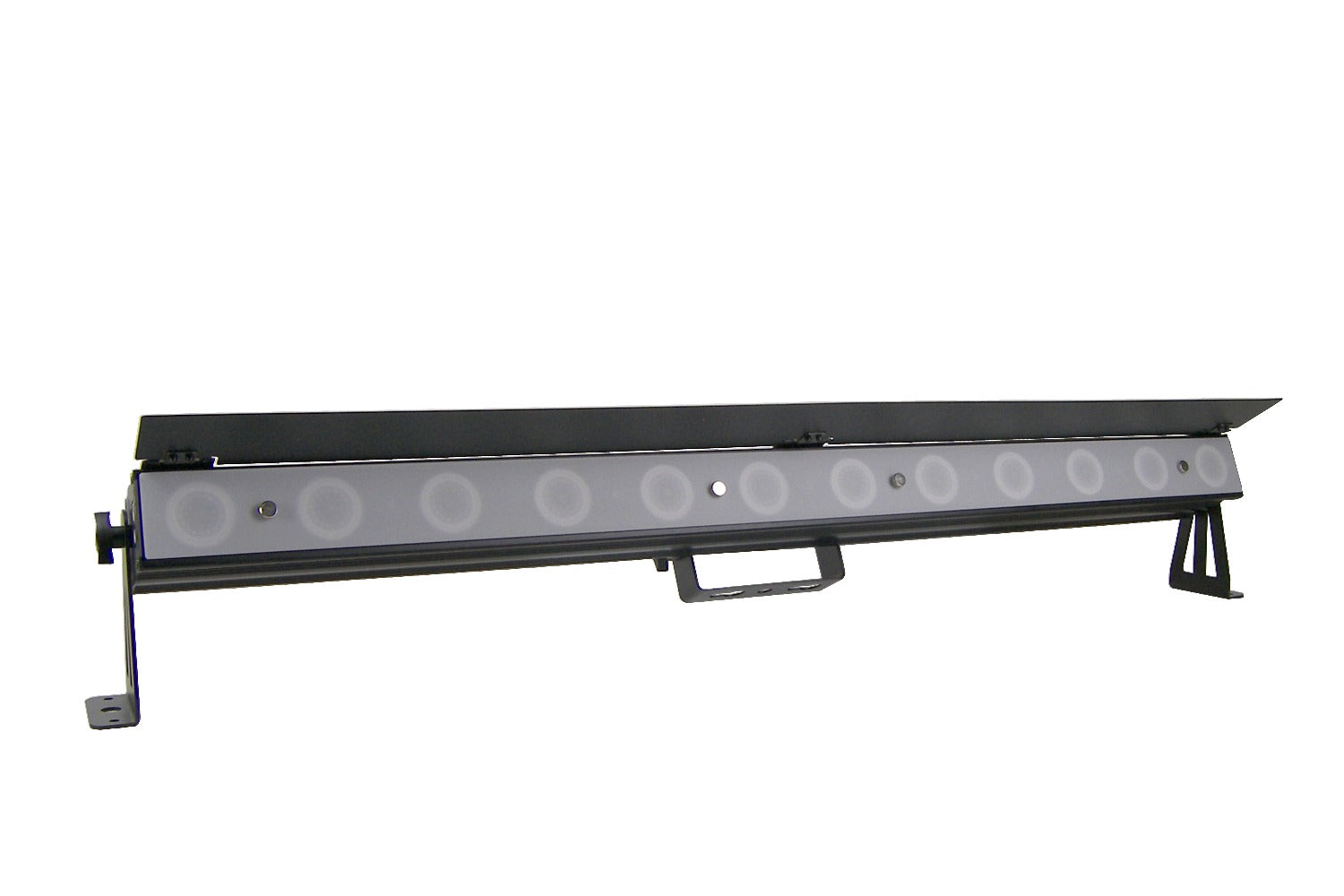

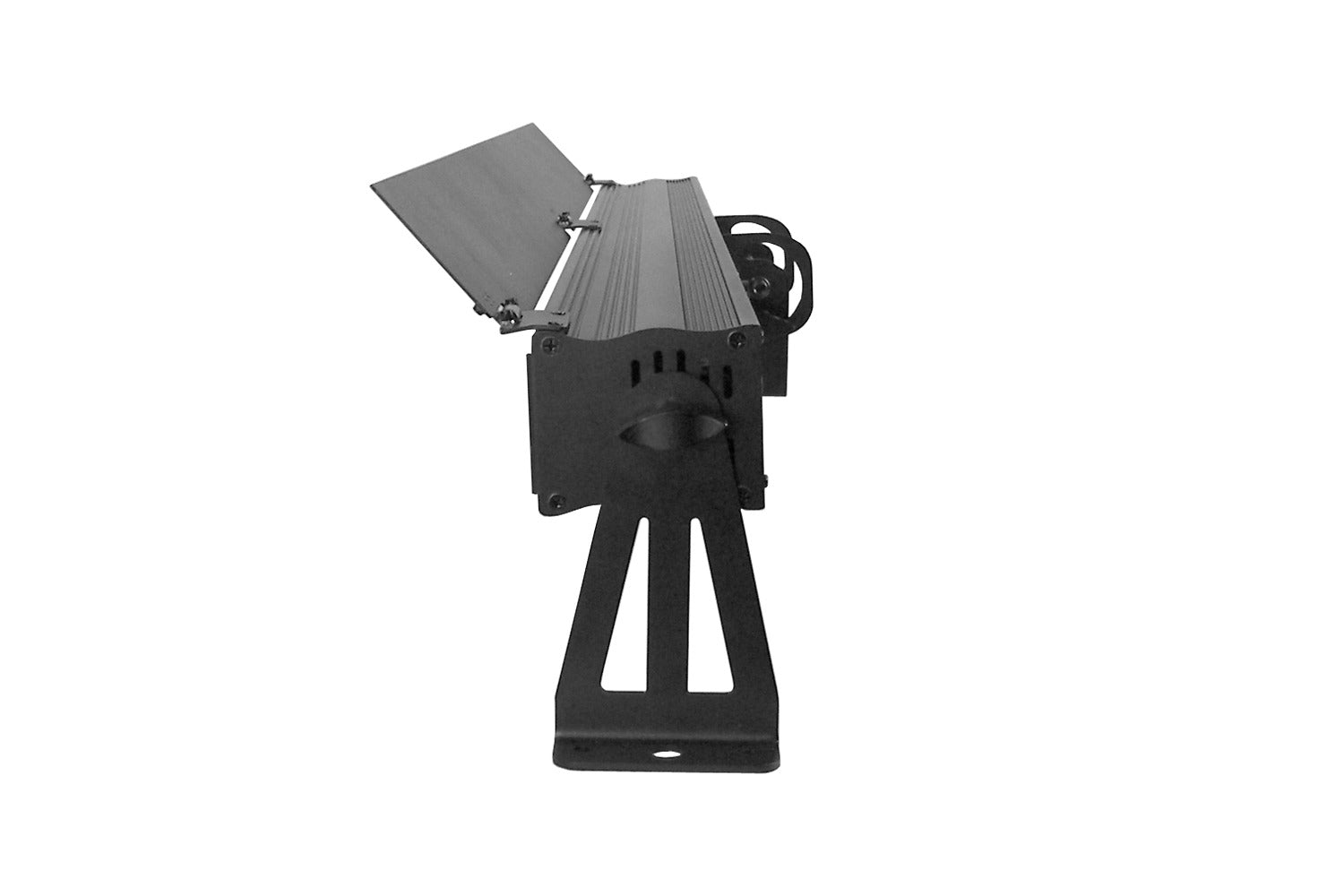

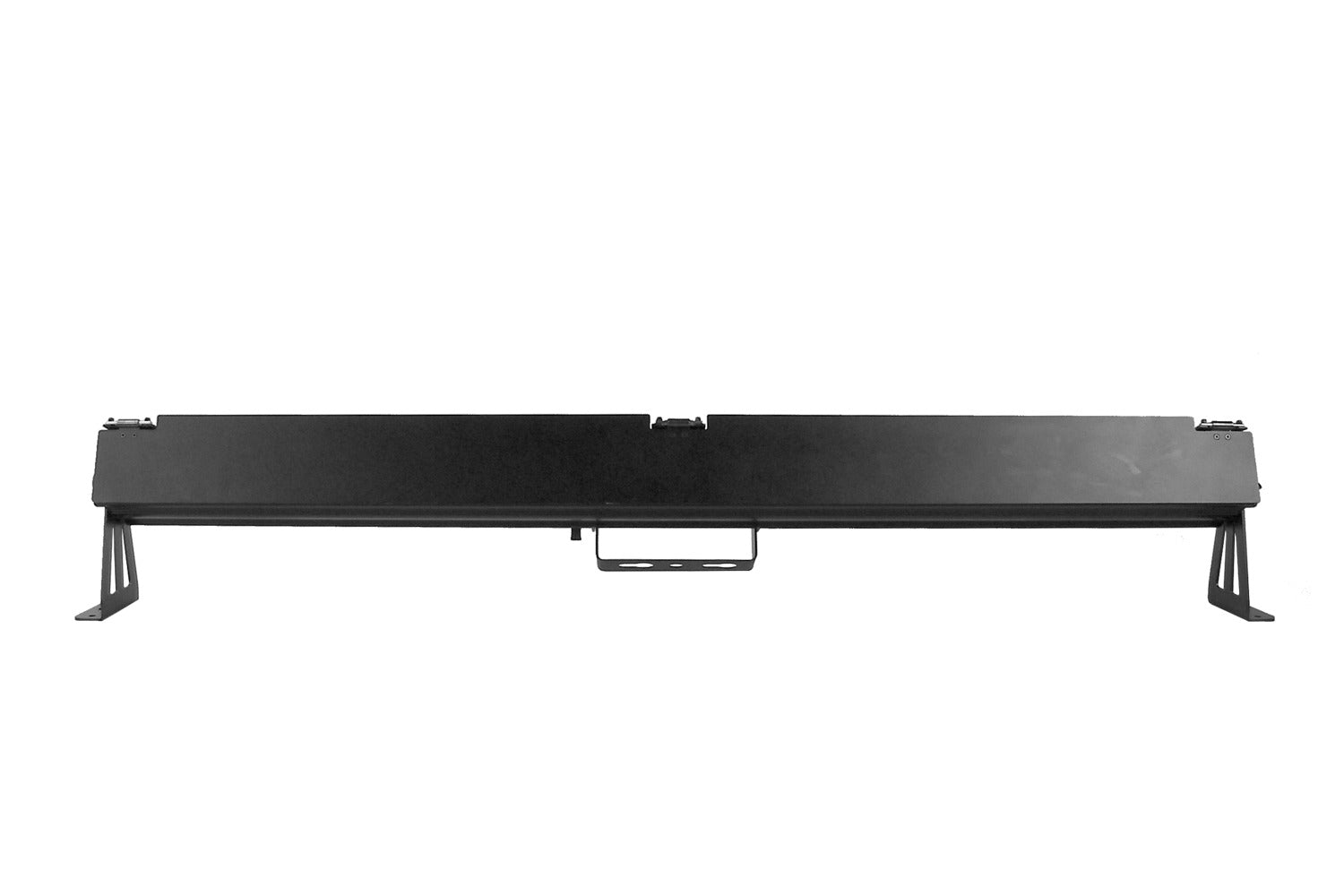

  • Barndoor: included
  • Frost filter: included
  • Cooling: Fanless Cooling

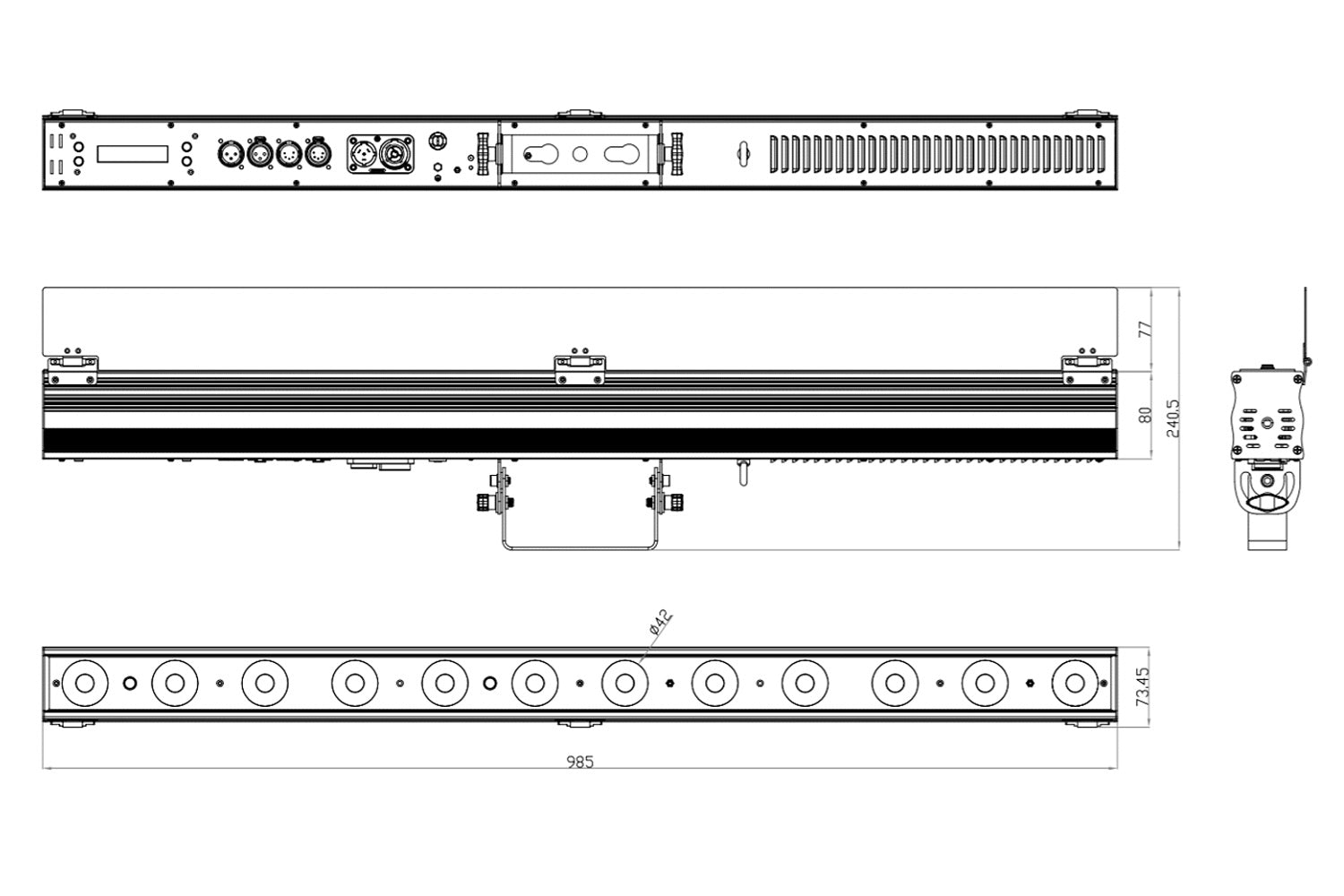

  • Dimension: 1050 x 165 x 80mm
  • Net Weight: 4.5kg
