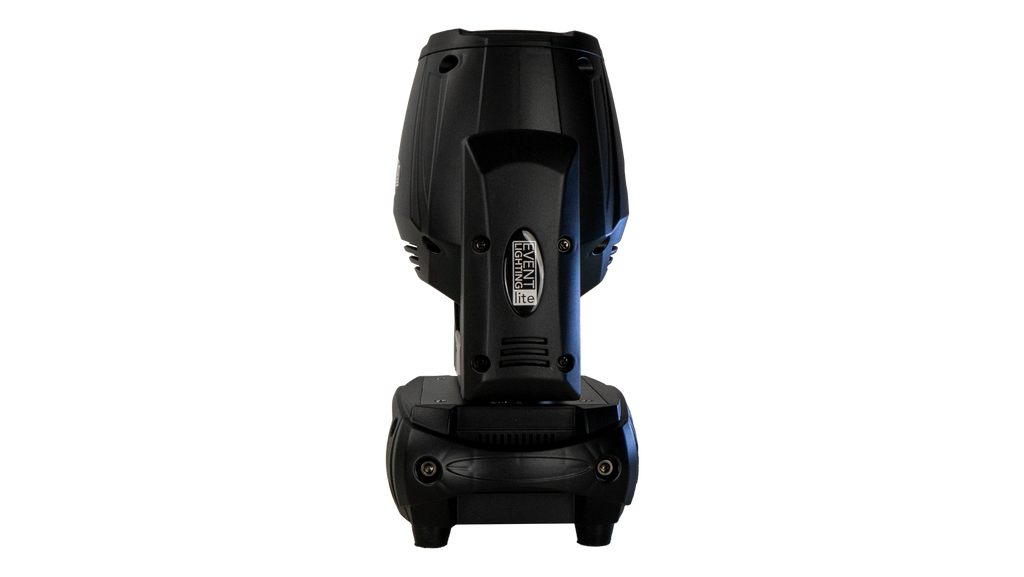

The LM75B Beam Moving Head is a lightweight, reduced and super quick little beast. Highlighting a sharp and narrow tight beam, Fitted with a strong 75W LED. Incorporating a 2-degree beam point makes this the ideal for long-range gobo projection and sharp shaft figures. Controlled by DMX, auto mode, sound dynamic mode, or expert/slave mode. granting you the freedom and simplicity you require to launch your light show.
It is the ideal installation for lighting fashioners, DJs, groups, clubs, bars and establishments where a little impression and lightweight installation is great.
Technical Specifications
Photometrics
- Light Source: 75W White LED
- Beam Angle: 2°
- Output: 98,460 lux @ 2.5 m
- LED Lifespan: 50,000 hours
Colour
- 1x Colour wheel (12 colours + open)
Gobo
- 1x Fixed gobo wheel (17 gobos + open)
Effects
- Prism: 8-facet
- Dimming: 0-100%
- Strobe: 1-25 Hz
- Frost: Yes
Movement
- 8/16 – bit, auto-reposition
- Pan: 360°/540°/630°
- Tilt: 90°/180°/270°
- Limit mode: Center/corner/edge
Power
- Input Voltage: 100~240V AC, 50/60Hz
- Power Consumption: 110 W
- Connection: powerCon in
- Fuse: F2A 250V
Control
- Protocol: DMX512
-
Operation Modes: DMX, auto, manual, sound active, master/slave
- DMX Channels: 12/10
- Interface: 3-pin XLR in/out
- Display: 4-button 1.44 inch TFT LCD control panel
Housing
- Materials: Metal & flame retardant ABS, matte black finish
- IP rating: IP20
- Cooling: Fan
- Net Weight: 4.6 kg
- Rigging: 1x omega bracket with 1/4 turn quick locks
