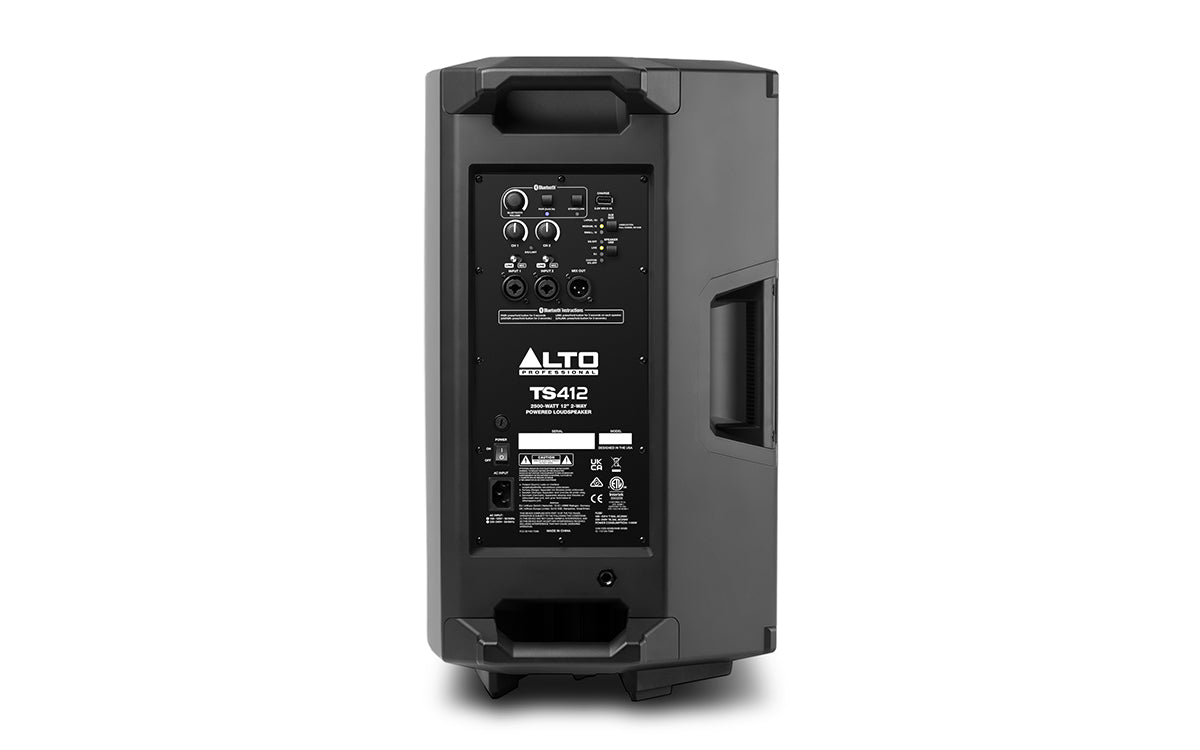

Alto Professional - TS412 12" 2500W Active 2-WAY Speaker With Bluetooth, DSP & APP Control

TS4 takes TS3 to a whole new level. The legacy of TrueSonic speakers continues with increased power, clearer sound & Bluetooth functions like streaming, linking & APP control. Compact & lightweight, the TS4 Series ensures loud, clear sound for any event. Featuring 12" woofer & 1.4" compression driver, it delivers 2500W of class-leading power. The FREE Alto App grants remote control & configuration. It includes a 3-channel mixer, XLR/TRS combo jacks & Bluetooth streaming. "Speaker Use" modes allow optimal sound in any situation. With custom EQ, fanless class D amps & suspension points, TS4 is reliable whatever the application.



• 2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)

• FREE Alto App (iOS/Android) for remote configuration and control

• Bluetooth® audio streaming direct from device

• On-board DSP with 4 Speaker Use modes (inc. Custom EQ via App)

• True Wireless Stereo speaker linking via Bluetooth®

• Integrated 3-channel mixer with dual XLR ¼-inch combo inputs, mic/line switches and independent level controls

• XLR Mix output, Speaker Use, and Sub Size Controls

• 12” driver, 2.5” (63 mm) high-temperature voice coil

• 1” exit ceramic driver with 1.4” (35 mm) coil

• Lightweight enclosure for easy transport, set up and installation

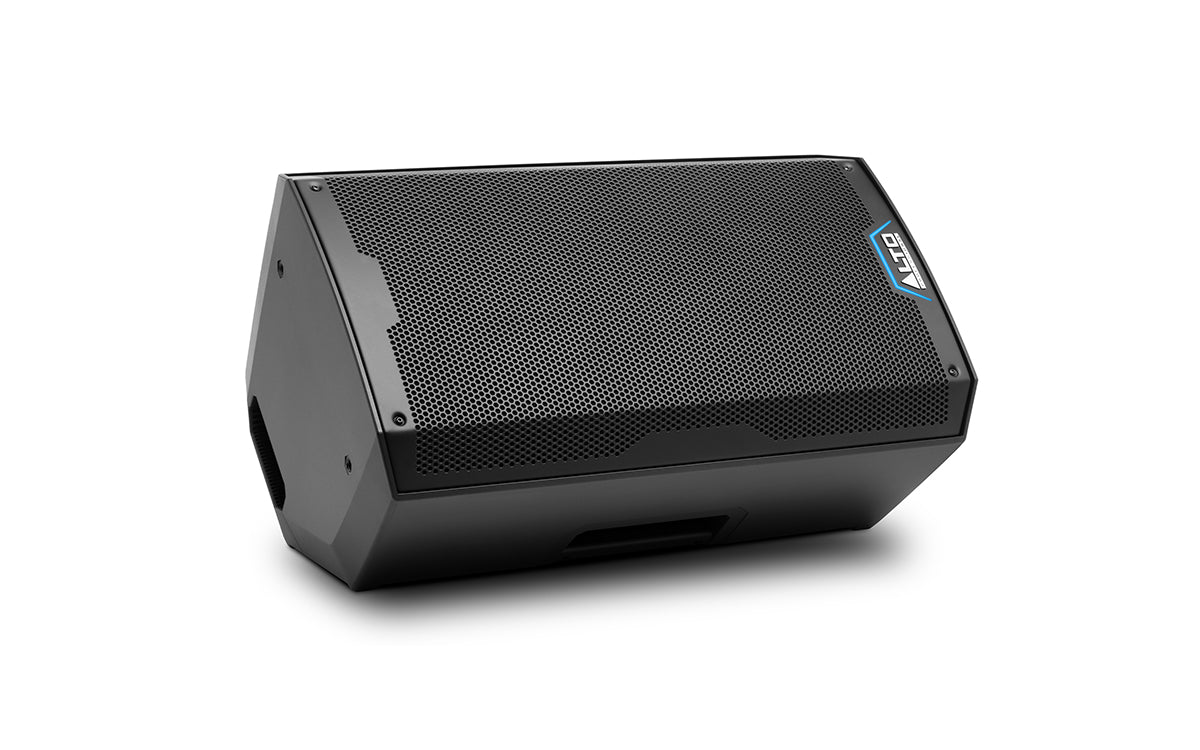

• Versatile design - pole-mountable, wedge monitor or flown application with integral M10 suspension points

• Powerful and efficient class D amplifiers with fanless cooling design to run cleaner, quieter and with greater long-term reliability

• Designed and tuned in the USA


Output Power: 2500 W peak (1600 LF + 900 HF) 1250 W continuous RMS (800 LF + 450 HF)

Low-Frequency Driver: 12.0” driver, 2.5” (63 mm) high-temperature voice coil. 1 x 800 W RMS @ 2 Ω.

High-Frequency Driver: 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 450 W @ 4 Ω.

Crossover Frequency: 2 kHz

Maximum SPL: 132 dB (peak), 129 dB (continuous) (dB-SPL @ 1 m)

Frequency Response: 53 Hz – 20 kHz (+/-3 dB)

Frequency Range: 44 Hz – 20 kHz (-10 dB)

Horn Coverage: 90° horizontal x 60° vertical (nominal)

Connectors: (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input

Input Impedance Line: 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K

Line Gain/Volume Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output

Mic/Inst. Gain/VolumeControl Range: -∞ to +50 dB

USB Charging Port: 5V 2.1A

Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button

Indicators: (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)

Power Connection: IEC

Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz

Consumption: 1100W

Fuse: 100-120V T15AL AC250V; 220-240V T6.3AL AC250V

Protection: Electronic clip, thermal, and transducer overdrive protection

Enclosure: Injected Molded Enclosure and Perforated Metal Grille

Mounting/Installation: Standard 36 mm pole socket, flown application with integral M10 suspension points, or in a wedge monitor position

Operating Temperature: -10°C to 45°C (14°F to 113°F)

Dimensions: (height x width x depth)23.9” x 13.9” x 13.8” / 606.5 x 353.5 x 350.5 mm

Weight 33 lbs. / 15 kg
