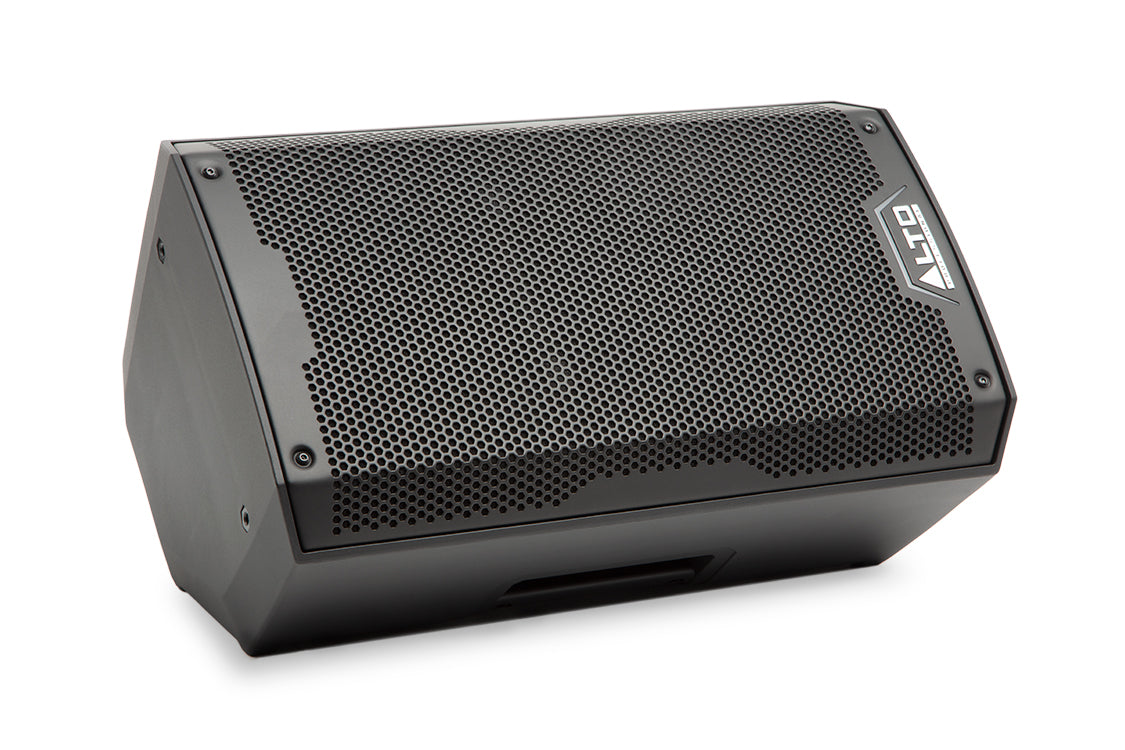

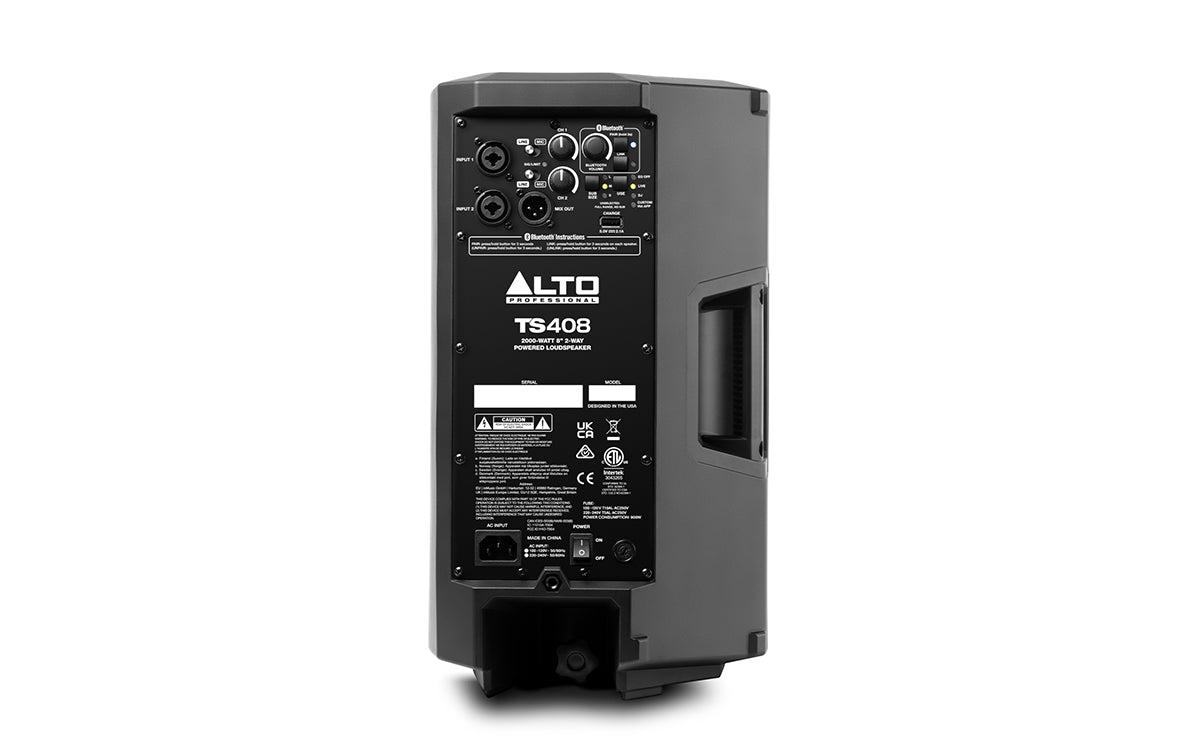

Alto Professional - TS408 8" 2000W Active 2-Way Speaker With Bluetooth, DSP & APP Control

Louder, clearer, smarter: TS4 redefines expectations, continuing the legacy of TrueSonic. 2000W power, 8" woofer, 1.4" compression driver, Bluetooth streaming, App control & linking, 3-channel mixer, custom EQ & sub size selection. Reliable, lightweight, sleek design. Freestanding, wedge, pole, or suspended. True Sonic power for every event.



• 2000 W peak (1300 LF + 700 HF), 1000 W continuous RMS (650 LF + 350 HF)
• FREE Alto App (iOS/Android) for remote configuration and control
• Bluetooth® audio streaming direct from device
• On-board DSP with 4 Speaker Use modes (inc. Custom EQ via App)
• True Wireless Stereo speaker linking via Bluetooth®
• Integrated 3-channel mixer with dual XLR ¼-inch combo inputs, mic/line switches and independent level controls
• XLR Mix output, Speaker Use, and Sub Size Controls
• 8” driver, 2.0” (50 mm) high-temperature voice coil
• 1” exit ceramic driver with 1.4” (35 mm) coil
• Lightweight enclosure for easy transport, set up and installation
• Versatile design - pole-mountable, wedge monitor or flown application with integral M6 suspension points
• Powerful and efficient class D amplifiers with fanless cooling design to run cleaner, quieter and with greater long-term reliability
• Designed and tuned in the USA

Output Power: 2000 W peak (1300 LF + 700 HF), 1000 W continuous RMS (650 LF + 350 HF)

Low-Frequency Driver: 8.0” driver, 2.0” (50 mm) high-temperature voice coil. 1 x 650 W RMS @ 2 Ω.

High-Frequency Driver: 1.0” exit ceramic driver with 1.4” (35 mm) coil. 1 x 350 W @ 4 Ω.

Crossover Frequency: 2 kHz

Maximum SPL: 130 dB (peak), 127 dB (continuous) (dB-SPL @ 1 m)

Frequency Response: 62 Hz – 20 kHz (+/-3 dB)

Frequency Range: 52 Hz – 20 kHz (-10 dB)

Horn Coverage: 90° horizontal x 60° vertical (nominal)

Connectors: (2) XLR+1/4” (6.35 mm) TRS combo inputs (Balanced), (1) XLR output (Link), (1) IEC power cable input

Input Impedance Line: 10 KΩ balanced, 20 KΩ unbalanced, Mic: 1.2K

Line Gain/Volume Control Range: -∞ to 0 dB, +4 dBu nominal, +10 dBu for max output

Mic/Inst. Gain/Volume Control Range: -∞ to +50 dB

USB Charging Port: 5V 2.1A

Controls: Power switch, (2) gain control knobs (1 per input), (2) Mic/Line switches, Bluetooth volume control encoder, Pairing button, Stereo Link button, Sub Size button, Speaker Use button

Indicators: (1) Input Channel Signal/Limit/Clip LED (Green = Ch1/2 Signal) (Yellow = Ch1/2 Limiter) (Red = Ch1/2 Output Clipped), (1) Bluetooth LED (Blue), (1) Link LED (Orange), (4) DSP Presets LED (Green), (3) HPF LED (Green)

Power Connection: IEC

Voltage: 100-120V, 50/60Hz; 220-240V, 50-60Hz

Consumption: 900W

Fuse: 100-120V T10AL AC250V; 220-240V T5AL AC250V

Protection: Electronic clip, thermal, and transducer overdrive protection

Enclosure: Injected Molded Enclosure and Perforated Metal Grille

Mounting/Installation: Standard 36 mm pole socket, flown application, suspended with integral M6 points, or in a wedge monitor position

Operating Temperature: -10°C to 45°C (14°F to 113°F)

Dimensions: (height x width x depth) 17.2” x .10.1” x 9.6 / 436 x 256 x 245 mm

Weight: 20.7 lbs. / 9.4 kg
